Driver Seat Blower Motors (KU1)

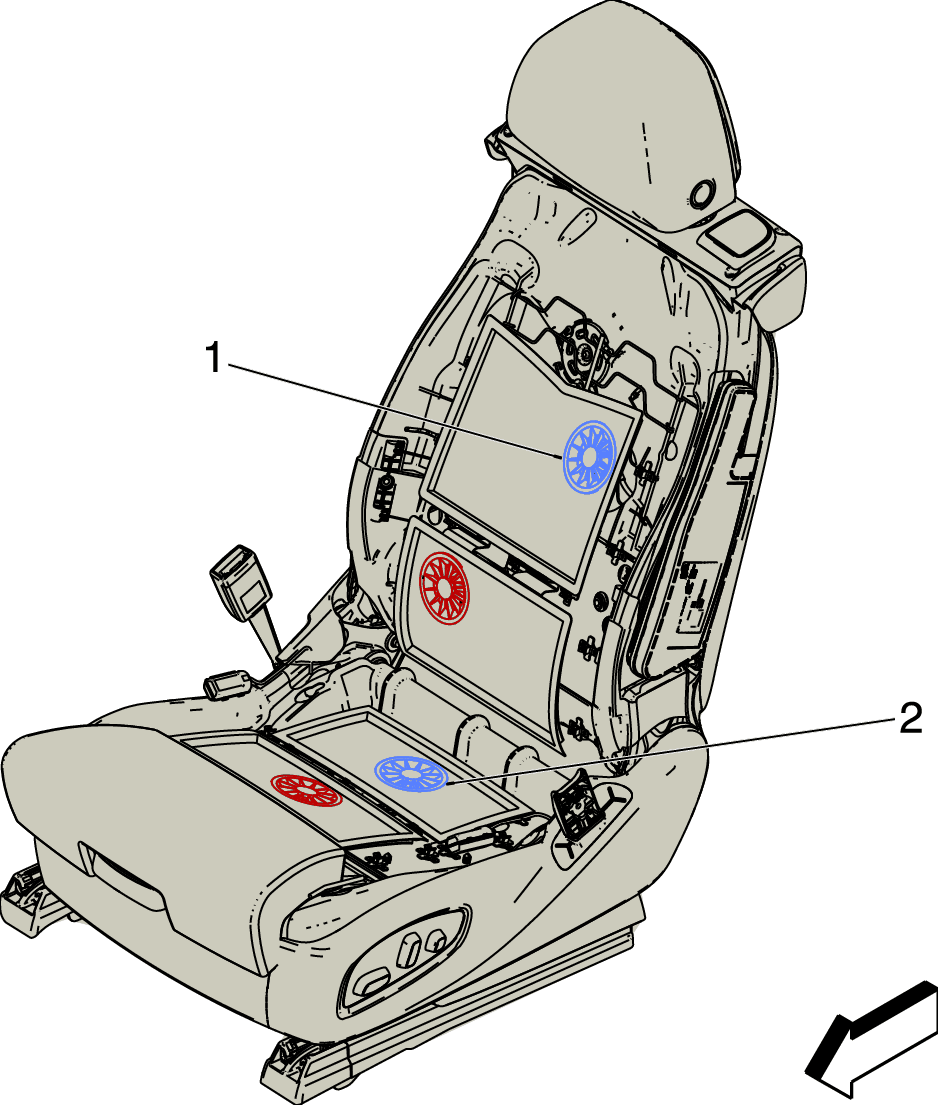

GM2891073Courtesy of GENERAL MOTORS COMPANY
Driver Seat Blower Motors (KU1)

Items
1. K53D Seat Blower Assembly - Driver Back (KU1) K53D Seat Blower Assembly - Driver Back (-CZ2) , or K53D Seat Blower Assembly - Driver Back (CZ2)
2. K55D Seat Blower Assembly - Driver Cushion (KU1) K55D Seat Blower Assembly - Driver Cushion (-CZ2) , or K55D Seat Blower Assembly - Driver Cushion (CZ2)
