K55D Seat Blower Assembly - Driver Cushion (-CZ2)
 Courtesy of GENERAL MOTORS COMPANY
|

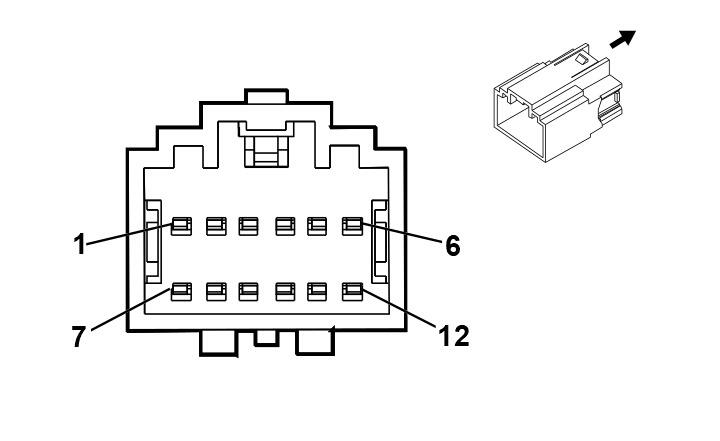

Connector Part Information
- Harness Type: Driver Seat Cushion
- OEM Connector: 7282-3442-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way M 1.5 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/WH |
2150 |
Ground |
I |
- |
| 2 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 3 |
0.35 |
GN/VT |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 4 |
0.75 |
VT/BK |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 5 |
0.5 |
RD/WH |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 6 |
0.5 |
RD/WH |
5907 |
Driver Seat Vent Motor Control 2 |
I |
- |
| 7 |
0.5 |
RD/WH |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 8 |
0.75 |
VT/BK |
2424 |
Driver Heated Back Element Low Reference |
I |
- |
| 9 |
0.75 |
BN/VT |
2077 |
Driver Heated Seat Element Control |
I |
- |
| 10 |
0.35 |
YE/GY |
2079 |
Driver Heated Seat NTC Signal |
I |
- |
| 11 |
0.35 |
BK/YE |
2080 |
Driver Heated Seat NTC Low Reference |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
