Air Cleaner Outlet Rear Duct Replacement (LF3)

Courtesy of GENERAL MOTORS COMPANY

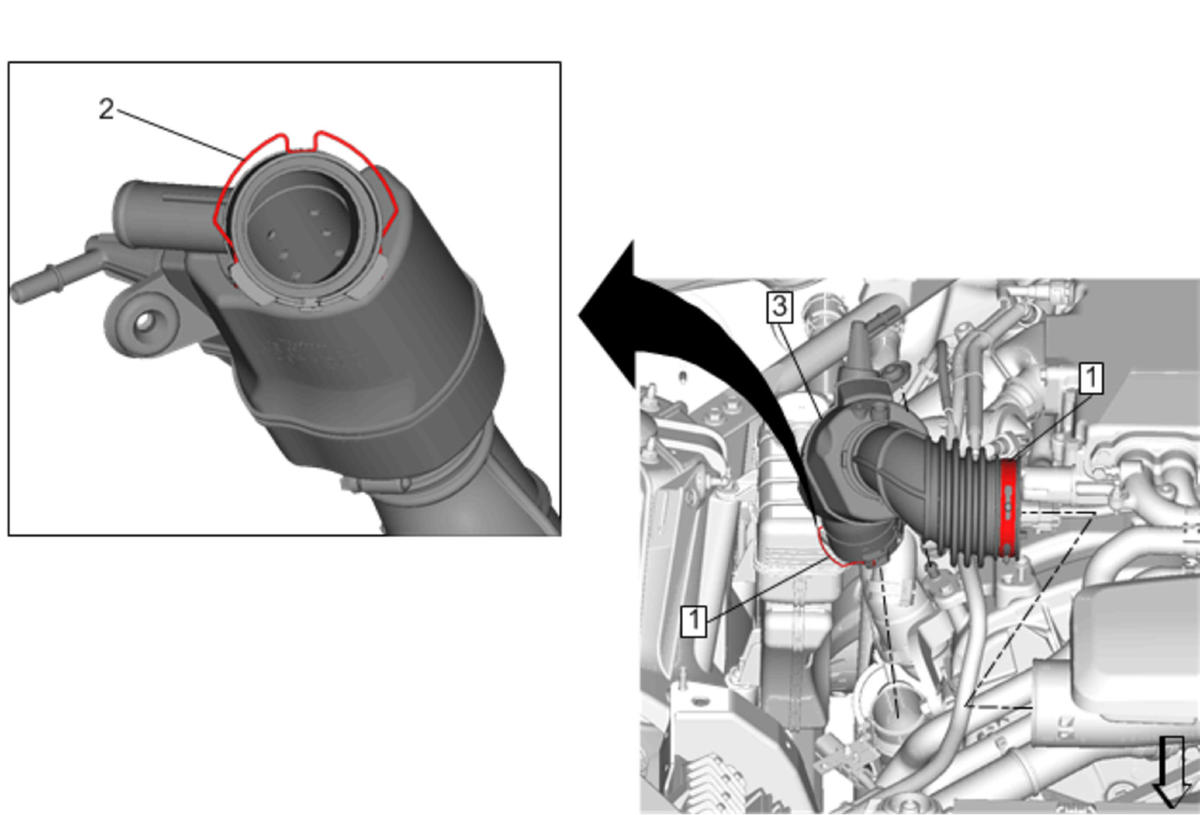

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement (LF3) Disconnect the charge air bypass valve right side from the charge air cooler inlet pipe right side. Charge Air Cooler Inlet Pipe Replacement - Right Side (LF3) If the air cleaner outlet rear duct requires removal from the vehicle, disconnect the PCV tube. Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LF3 (Camshaft Cover to PCV Tube)) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LF3 (Bank 1 Camshaft Cover to Air Outlet Duct)) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LF3 (Bank 2 Camshaft Cover to Air Outlet Duct)) Turbocharger Inlet Absolute Pressure Sensor Replacement NOTE: Remove the duct with the bypass valve and hose as an assembly then transfer parts.
1	Air Cleaner Outlet Rear Duct Clamp CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in) NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2	Air Cleaner Outlet Rear Duct Spring Clip Procedure Use a flat bladed tool to disengage both sides of the spring clip to remove air cleaner outlet duct from turbocharger. NOTE: Spring clip is buried low and is a blind operation.
3	Air Cleaner Outlet Rear Duct Procedure Lift up on the air cleaner assembly to remove from retainer.
