Rear Bumper Fascia Energy Absorber Replacement

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

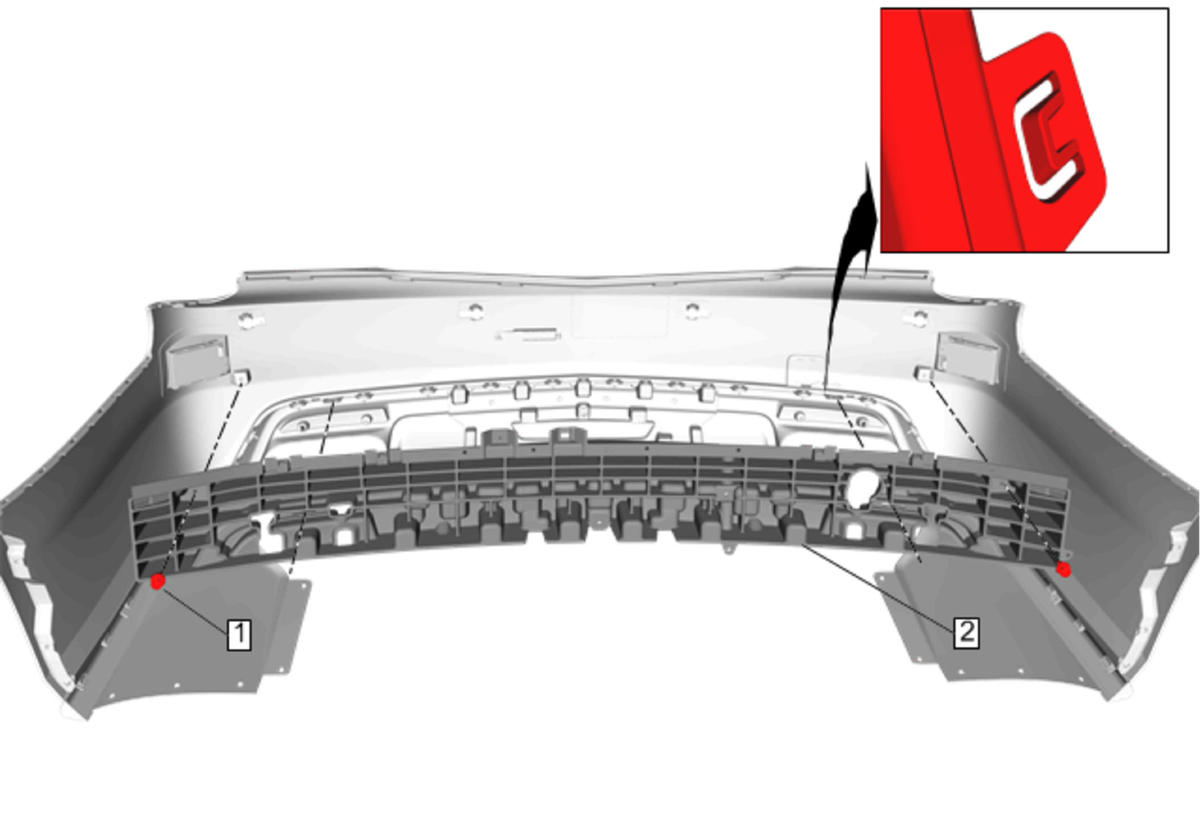

GM4358182Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (CTS-V) .
  2. Backup Lamp Replacement
  3. Backup and Rear Fog Lamp Replacement
1 Rear Bumper Fascia Energy Absorber Retainer[2x]
2 Rear Bumper Fascia Energy Absorber

Procedure

  1. Release the two retainer tabs.
  2. Disconnect the electrical connector:
  3. Transfer components as necessary.
