Backup Lamp Replacement

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

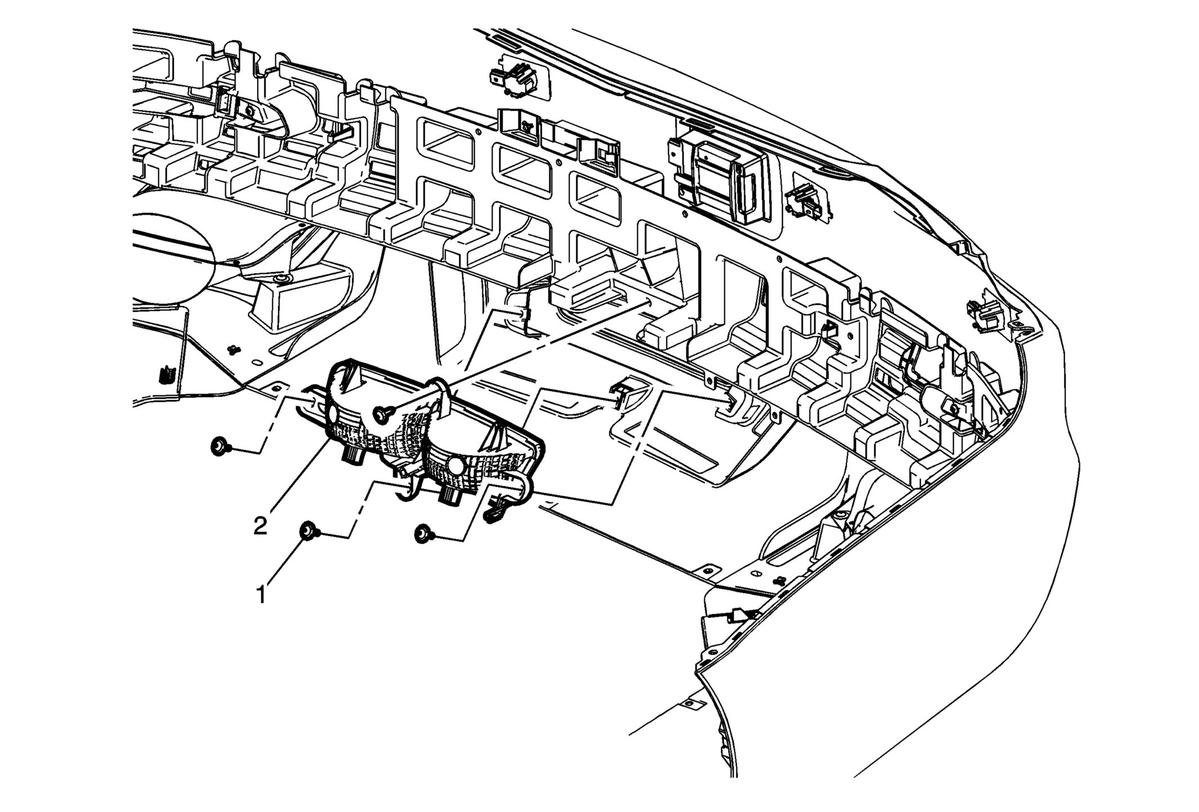

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (CTS-V) .
1	Backup Lamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Backup Lamp Procedure Disconnect the electrical connector. Remove backup lamp from rear bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (CTS-V) .

Backup Lamp Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Backup Lamp

Procedure

Disconnect the electrical connector.
Remove backup lamp from rear bumper fascia.
