Front Bumper Fascia Energy Absorber Replacement (CTS-V)

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

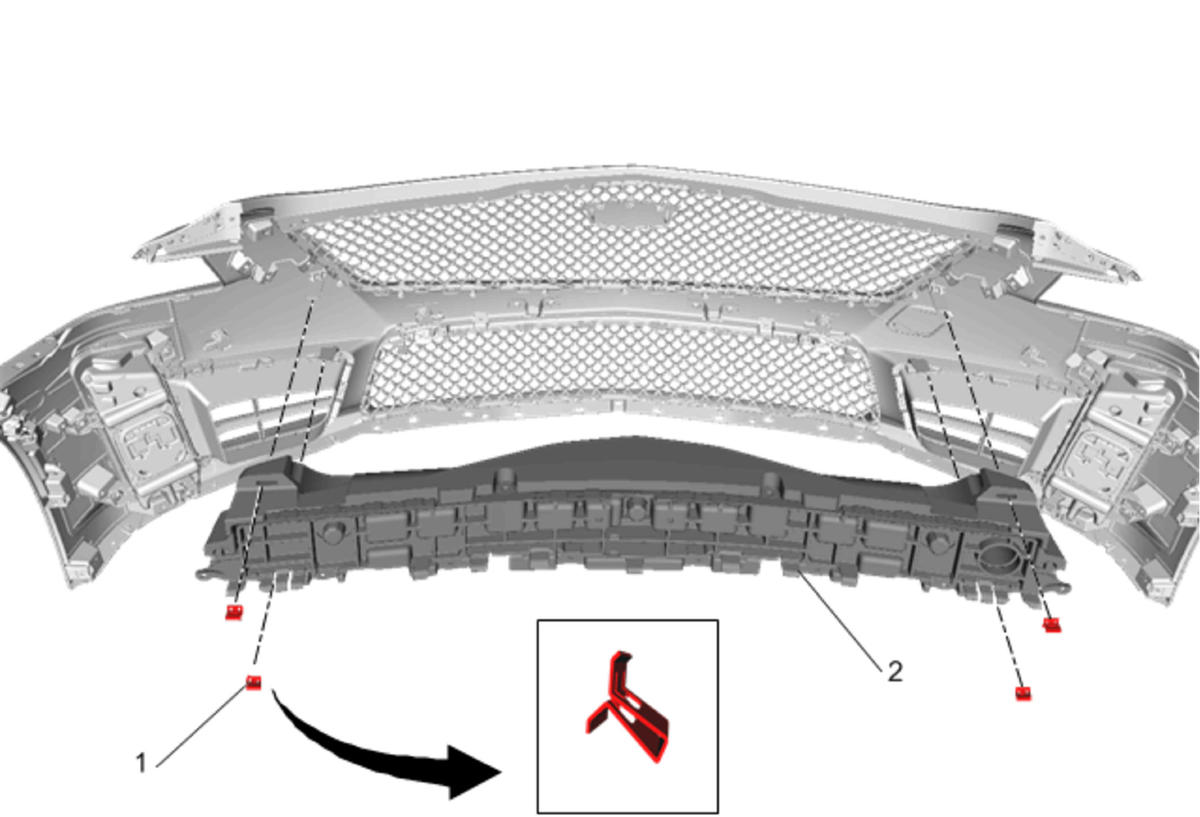

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement (CTS) Front Bumper Fascia Replacement (CTS-V) Place the bumper fascia face down on a clean protected surface.
1	Front Bumper Fascia Energy Absorber Clip [4x]
2	Front Bumper Fascia Energy Absorber Procedure Disconnect the electrical harness retainers from the absorber. Remove the absorber from the fascia.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Replacement (CTS) Front Bumper Fascia Replacement (CTS-V)
Place the bumper fascia face down on a clean protected surface.

Front Bumper Fascia Energy Absorber Clip [4x]

Front Bumper Fascia Energy Absorber

Procedure

Disconnect the electrical harness retainers from the absorber.
Remove the absorber from the fascia.
