Front Bumper Fascia Energy Absorber Replacement (CTS)

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

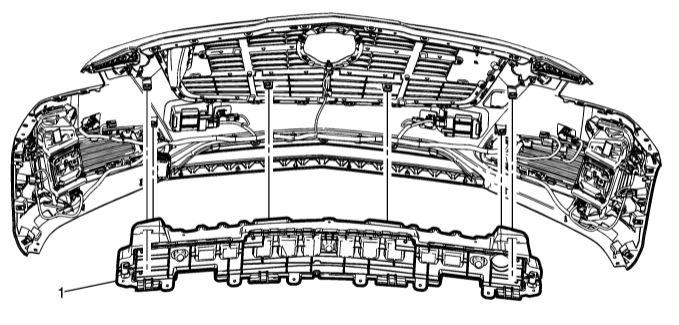

GM3444837Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (CTS) Front Bumper Fascia Replacement (CTS-V)
1 Front Bumper Fascia Energy Absorber

Procedure

  1. Place the bumper fascia face down on a clean protective surface.
  2. Disconnect the electrical harness retainers from the absorber.
  3. Remove the six metal retaining clips holding the absorber to the fascia.
  4. Transfer components as necessary.
