Floor Console Harness Routing

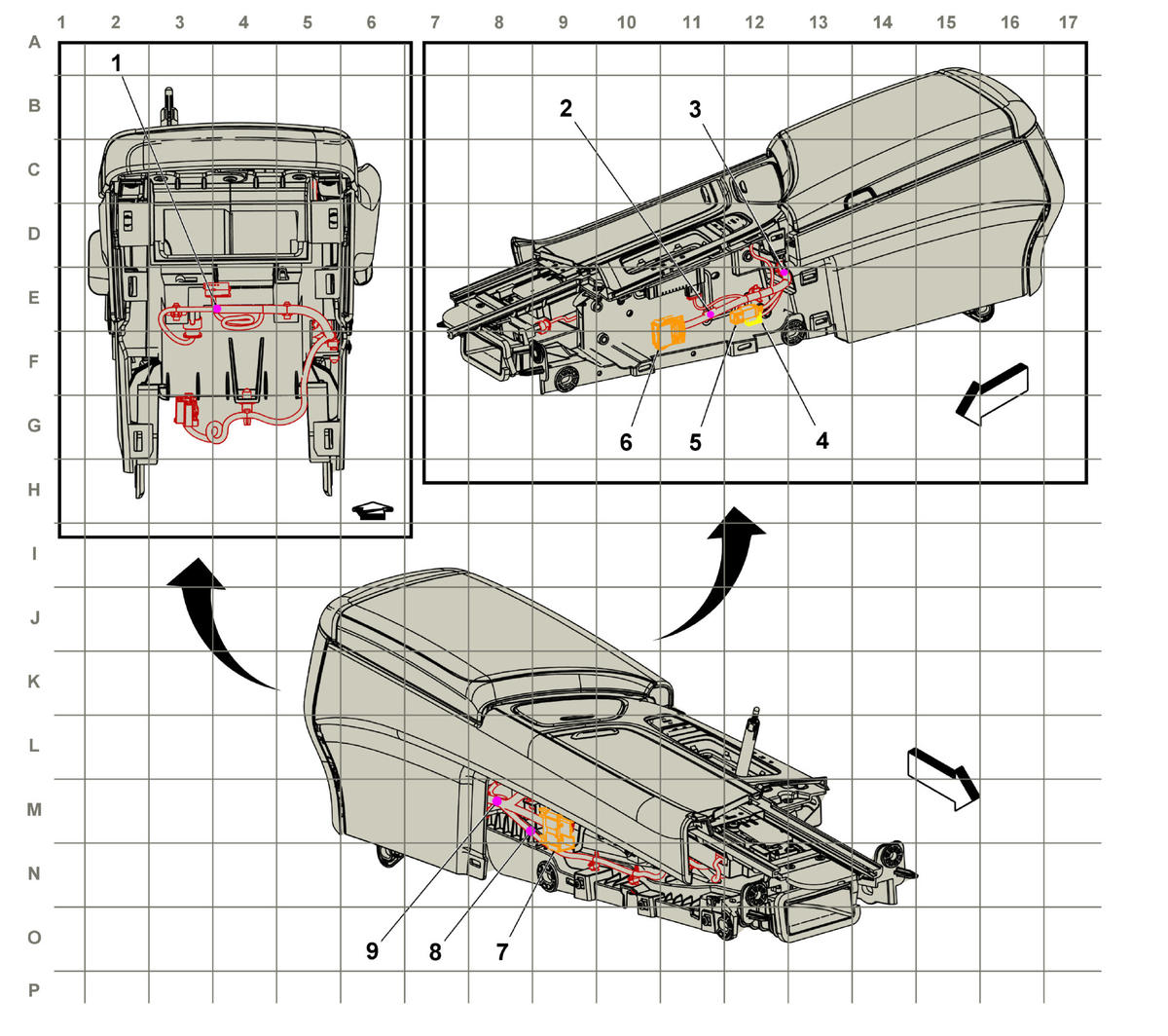

GM4935226Courtesy of GENERAL MOTORS COMPANY
Items
1. J301 Floor Console Harness
2. J304 Floor Console Harness
3. J300 Floor Console Harness
4. X305 Floor Console Harness to Shift Lever Harness (6 Cavities) X305 Floor Console Harness to Shift Lever Harness
5. X205 Floor Console Harness USB to Instrument Panel Harness USB X205 Floor Console Harness to Instrument Panel Harness
6. X204 Instrument Panel Harness to Floor Console Harness (22 Cavities) X204 Instrument Panel Harness to Floor Console Harness
7. X325 Body Harness to Floor Console Harness (24 Cavities) X325 Body Harness to Floor Console Harness
8. J302 Floor Console Harness
9. J303 Floor Console Harness
