Air Distributor Duct Replacement - Right Side

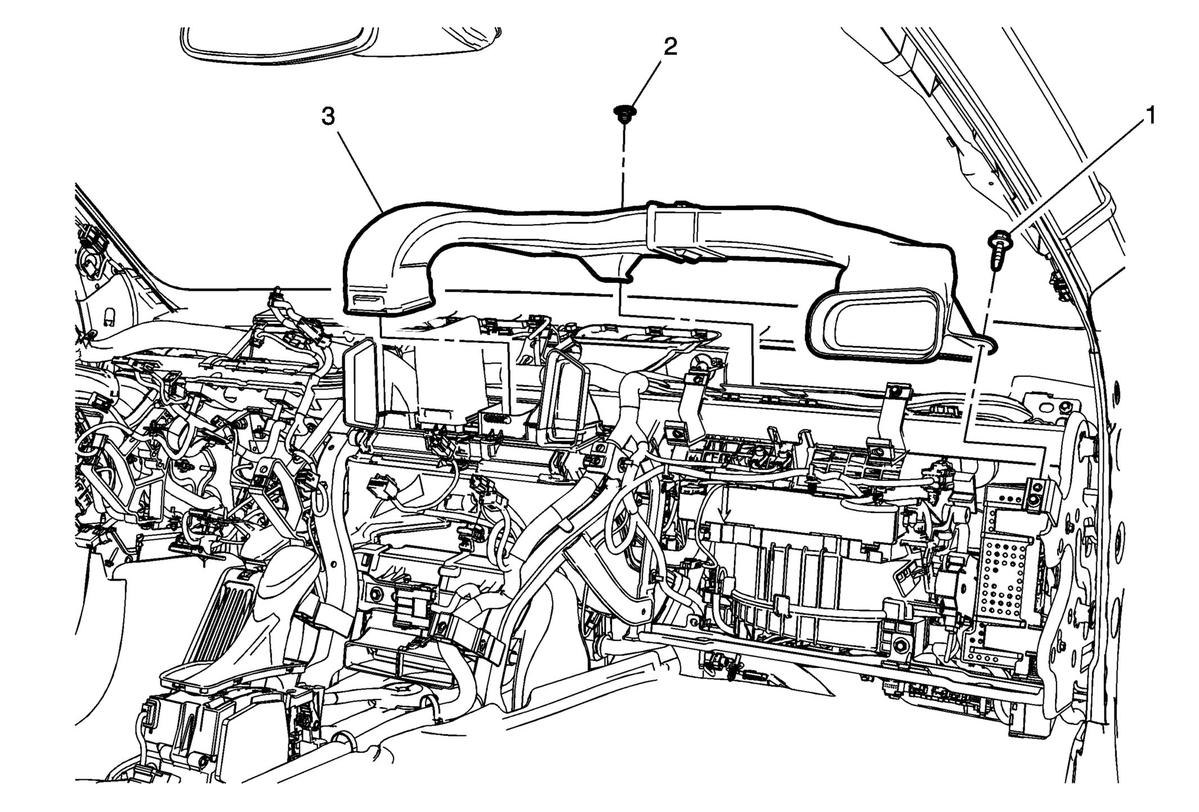

GM2832385Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right side window defogger outlet duct. Refer to Side Window Defogger Outlet Duct Replacement - Right Side .
1 Right Side Air Distributor Duct Bolt
CAUTION:

Refer to Fastener Caution .
2 Right Side Air Distributor Duct Fastener
3 Air Distributor Duct - Right Side

Procedures

  1. Disconnect the right upper air duct temperature sensor electrical connector.
  2. Transfer the right upper air duct temperature sensor.
