Side Window Defogger Outlet Duct Replacement - Right Side

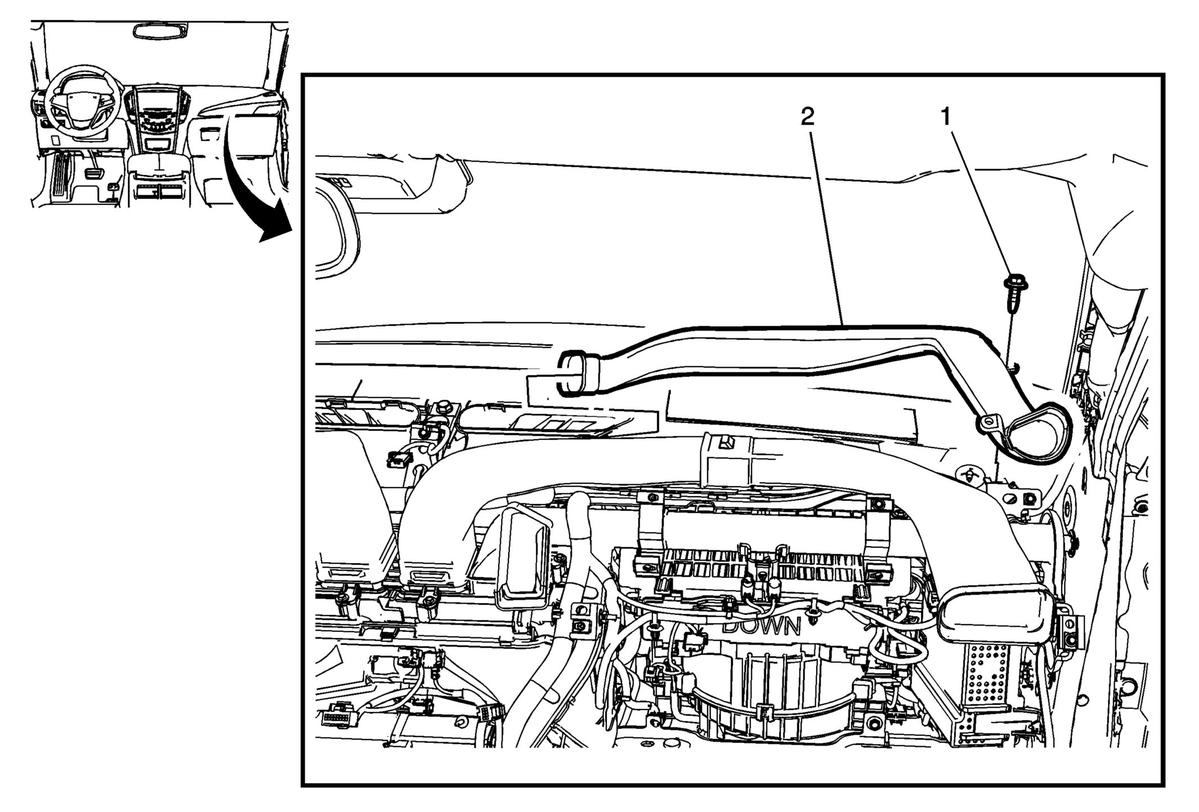

GM2829527Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel carrier assembly. Refer to Instrument Panel Carrier Replacement .
1 Right Side Window Defogger Outlet Duct Bolt
CAUTION:

Refer to Fastener Caution .
2 Side Window Defogger Outlet Duct - Right Side
