Air Distributor Duct Replacement - Left Side

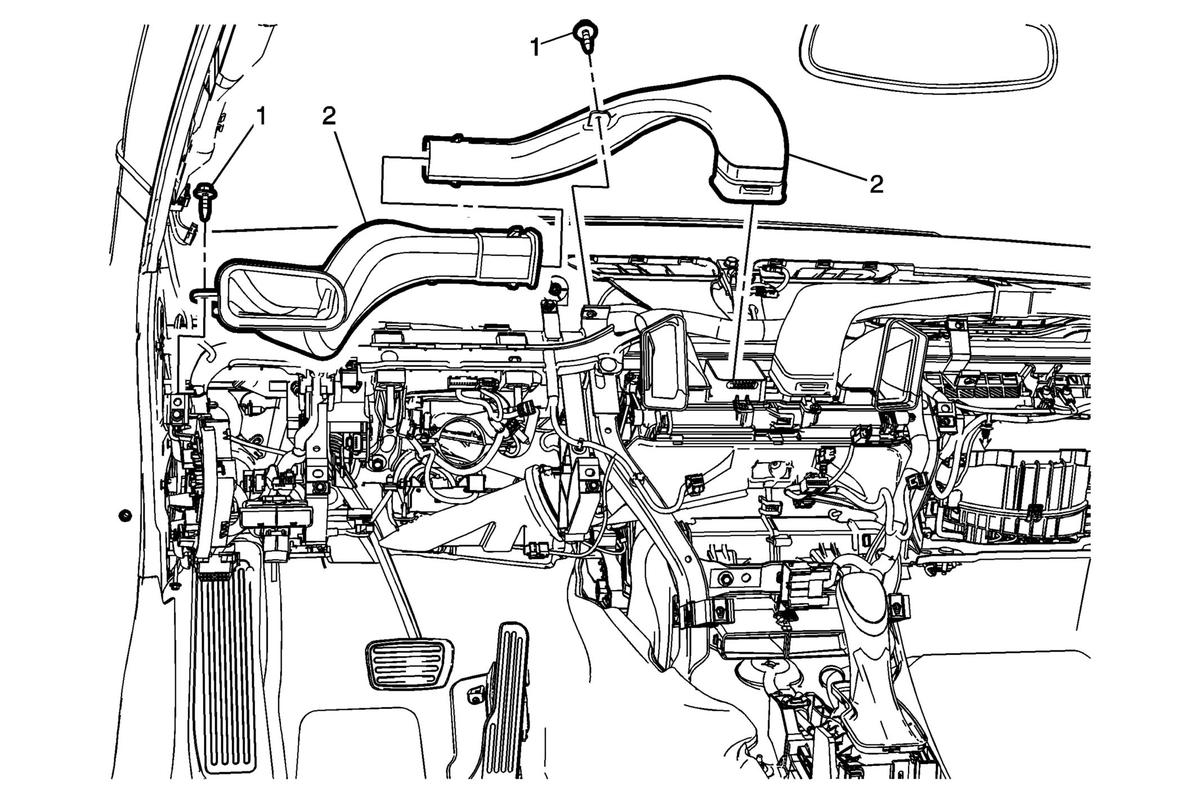

GM2832390Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the left side window defogger outlet duct. Refer to Side Window Defogger Outlet Duct Replacement - Left Side .
  2. Reposition the instrument panel wiring harness left side fuse block out of the way.
1 Left Side Air Distributor Duct Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Air Distributor Duct - Left Side

Procedures

  1. Separate the inner and outer air distributor ducts.
  2. Remove the inner air distributor duct.
  3. Disconnect the left upper air duct temperature sensor electrical connector.
  4. Maneuver the outer air distributor duct out from the vehicle.
  5. Transfer the left upper air duct temperature sensor.
