Side Window Defogger Outlet Duct Replacement - Left Side

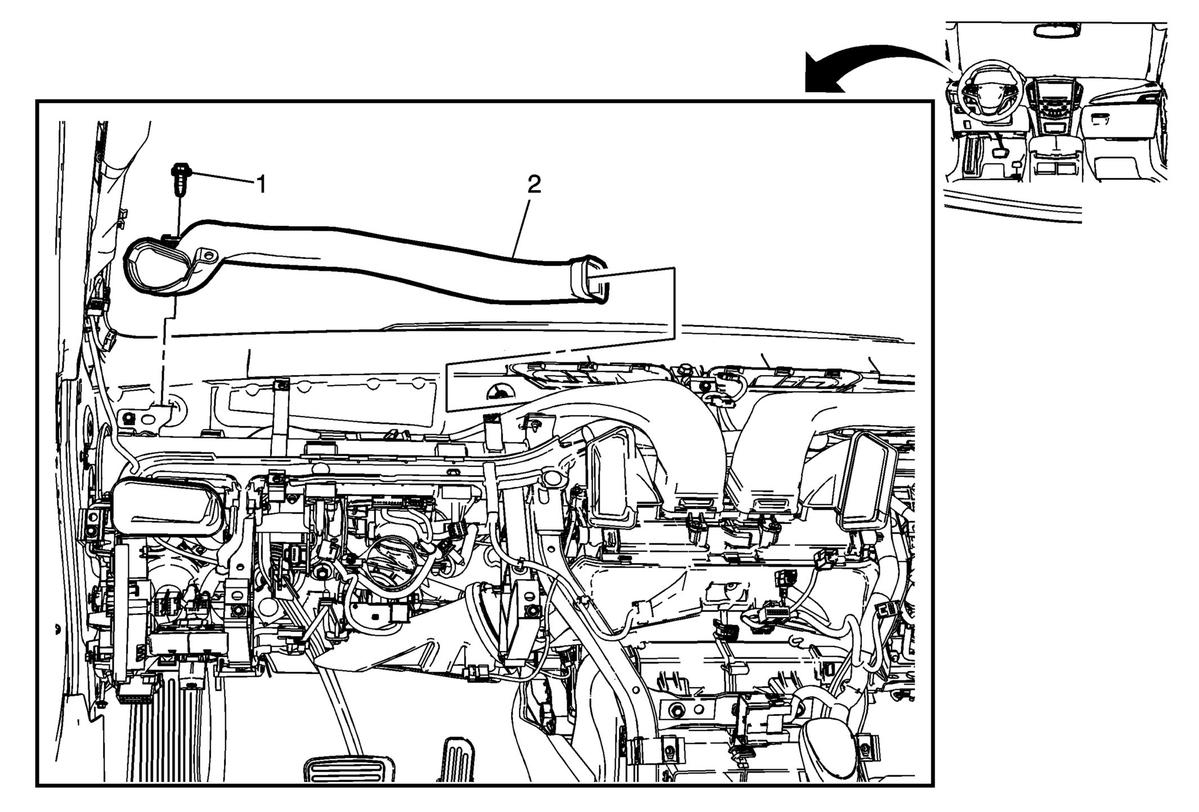

GM2832397Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel carrier assembly. Refer to Instrument Panel Carrier Replacement .
1 Left Side Window Defogger Outlet Duct Bolt
CAUTION:

Refer to Fastener Caution .
2 Side Window Defogger Outlet Duct - Left Side
