Front Side Door Weatherstrip Replacement - Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the door to the full open position. Remove the body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement .

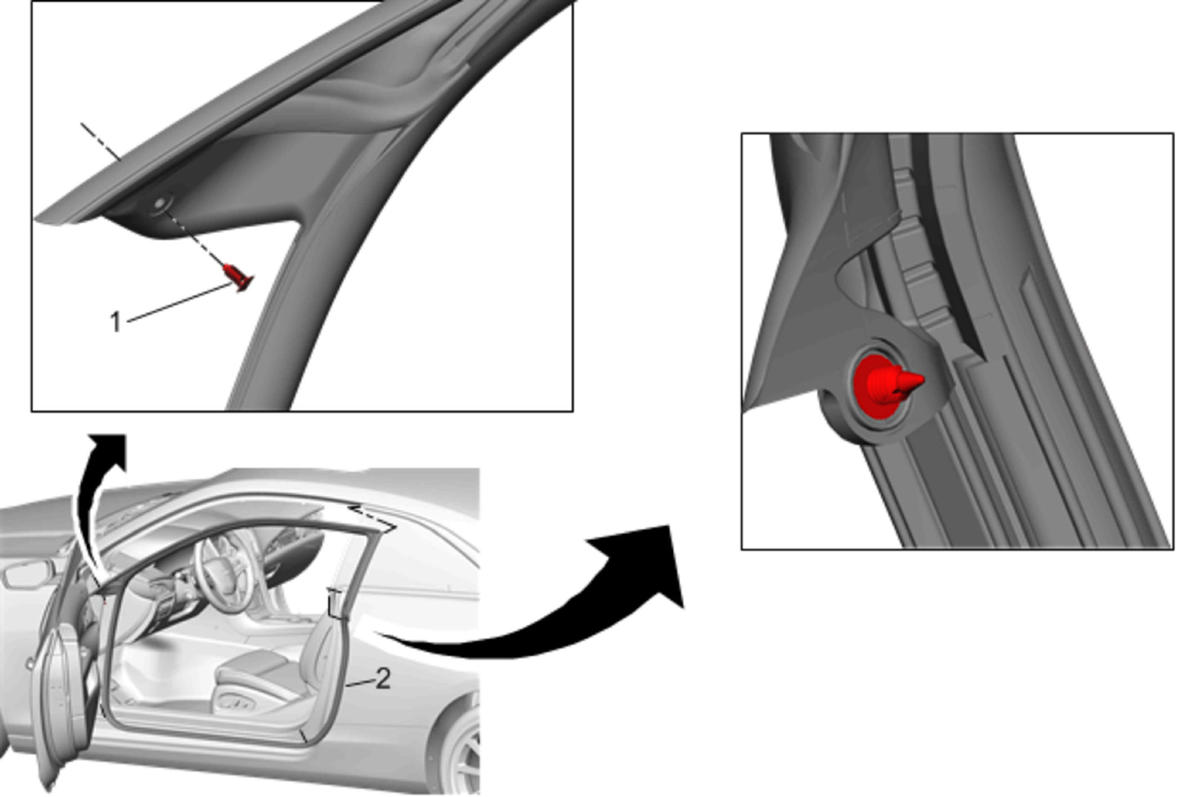

1	Front Side Door Weatherstrip Retainer Procedure Using a suitable tool, remove the retainer from the door opening flange.
2	Front Side Door Weatherstrip to Body Side Procedure Using a suitable tool, remove the integral retainer and weatherstrip from around the door opening flange. NOTE: Inspect the door for a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Preliminary Procedures

Open the door to the full open position.
Remove the body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement .

Front Side Door Weatherstrip Retainer
Procedure
Using a suitable tool, remove the retainer from the door opening flange.

Front Side Door Weatherstrip to Body Side
Procedure
Using a suitable tool, remove the integral retainer and weatherstrip from around the door opening flange.

NOTE:

Inspect the door for a proper seal after the weatherstrip has been replaced.
