Body Lock Pillar Garnish Molding Replacement

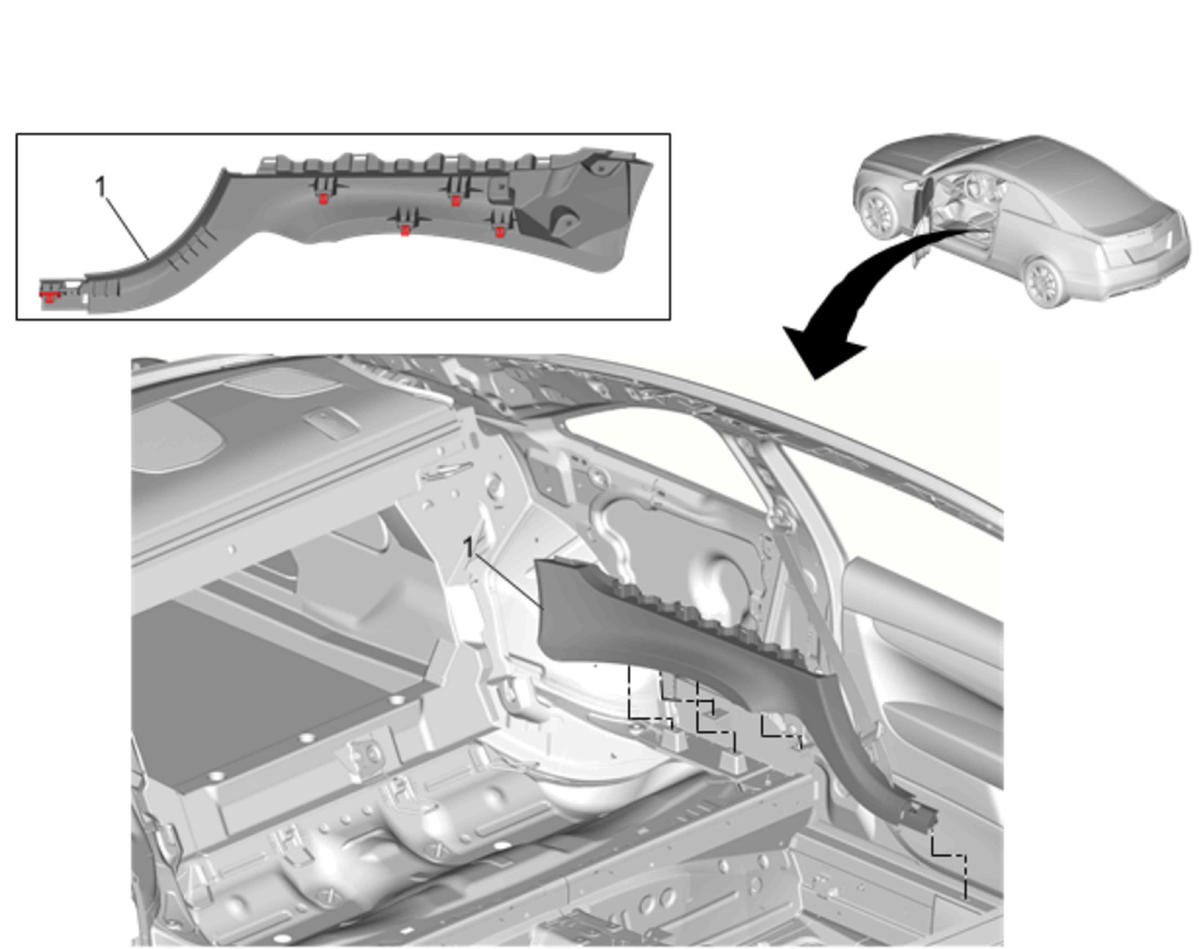

GM3775668Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
  2. Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
1 Body Lock Pillar Garnish Molding Assembly

Procedure

  1. Starting at the front gently pull up on the body lock pillar garnish molding to disengage the retaining clips.
  2. Reposition the rear floor panel carpet, if required.
