Front Side Door Check Link Replacement

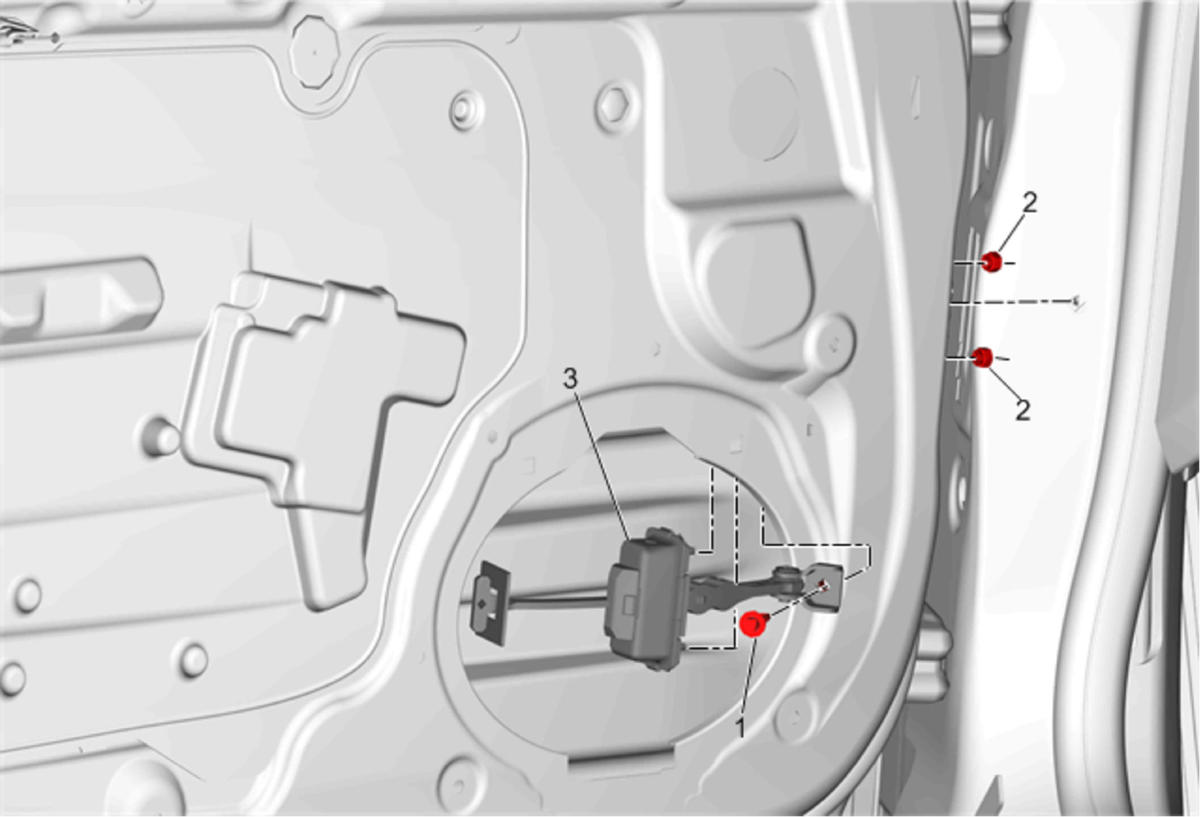

GM3684478Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Open the door to the full open position.
  2. Place the window in the full up position.
  3. Remove the radio front side door speaker. Refer to Radio Front Side Door Speaker Replacement .
1 Front Side Door Check Link to Body Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Front Side Door Check Link to Door Nut (Qty: 2)
Tighten
11.5 N.m (9 lb ft)
3 Front Side Door Check Link
NOTE:

Inspect the door for proper operation before installing the door trim.
