Radio Front Side Door Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

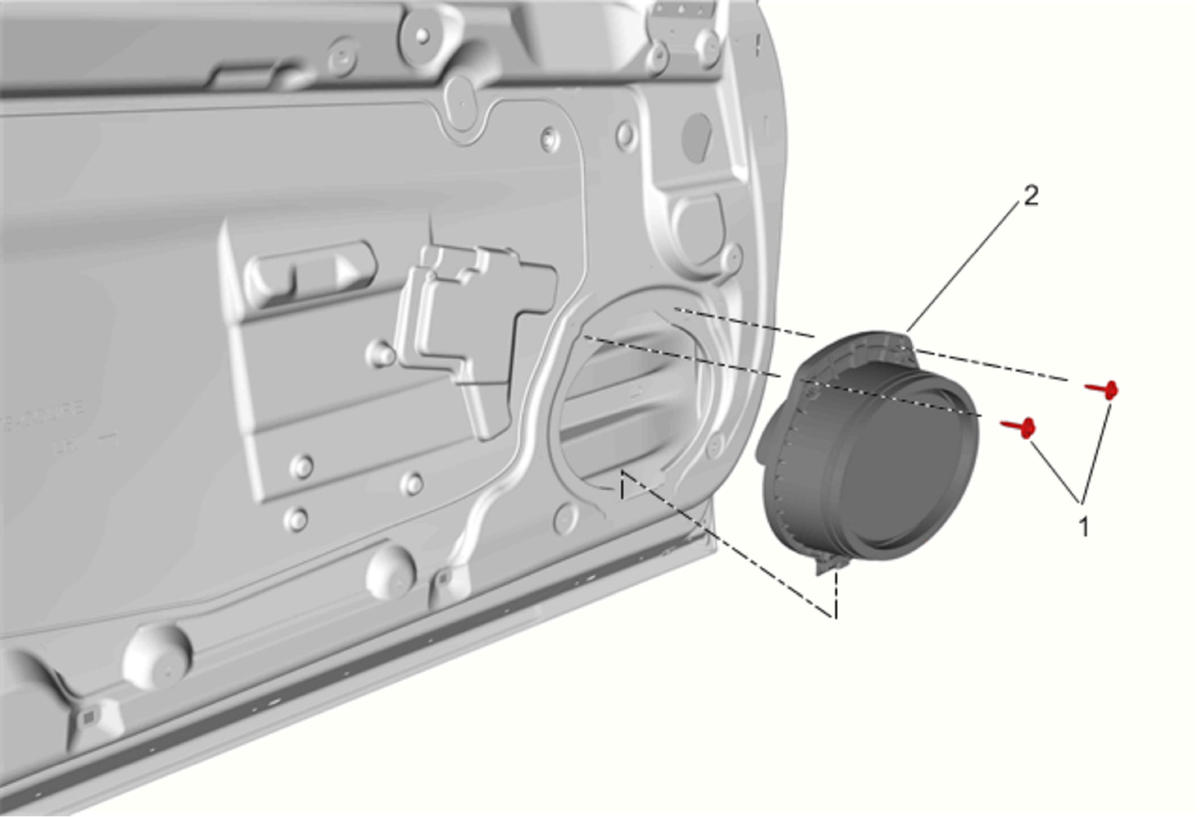

Callout	Component Name
Preliminary Procedure  Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Radio Front Side Door Speaker Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Front Side Door Speaker Procedure  Disconnect the electrical connector.
