Radio Bracket Replacement

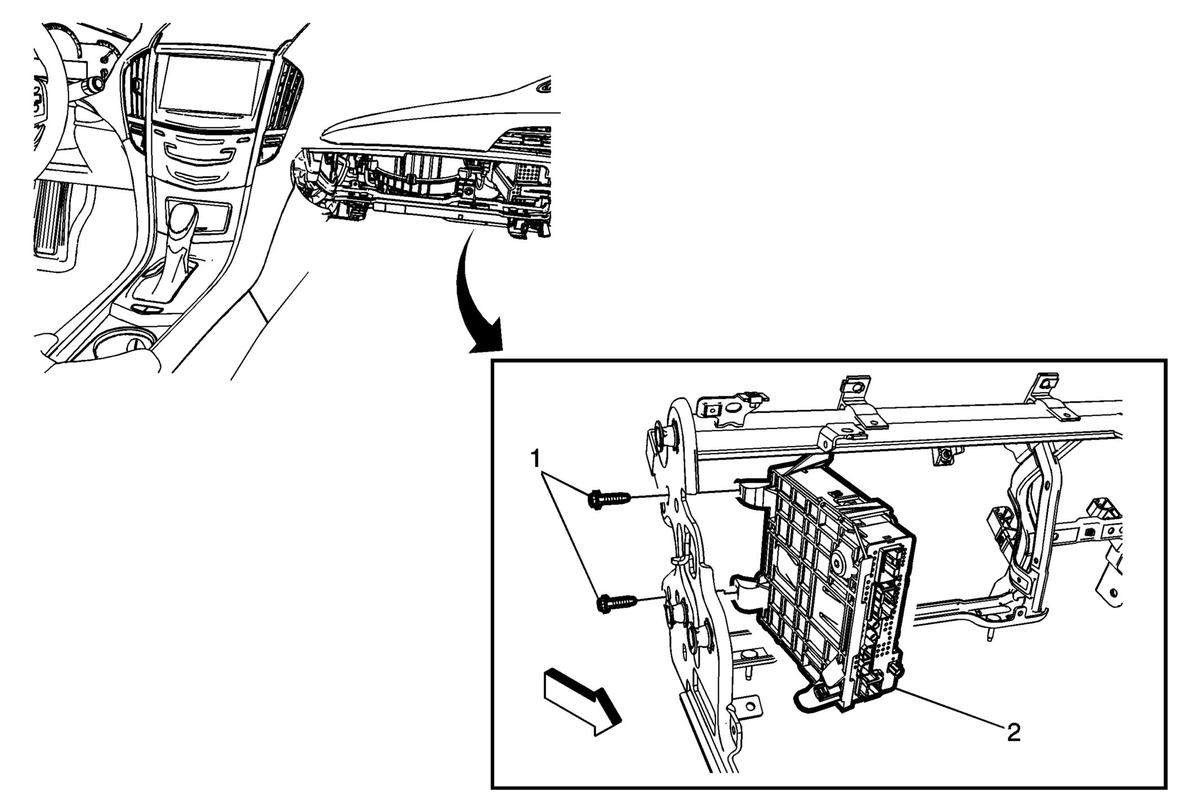

GM2833213Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
  2. Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .
1 Radio Bracket Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Radio Bracket

Procedure

  1. Disconnect the electrical connections.
  2. Transfer components as necessary.
