Installation Procedure

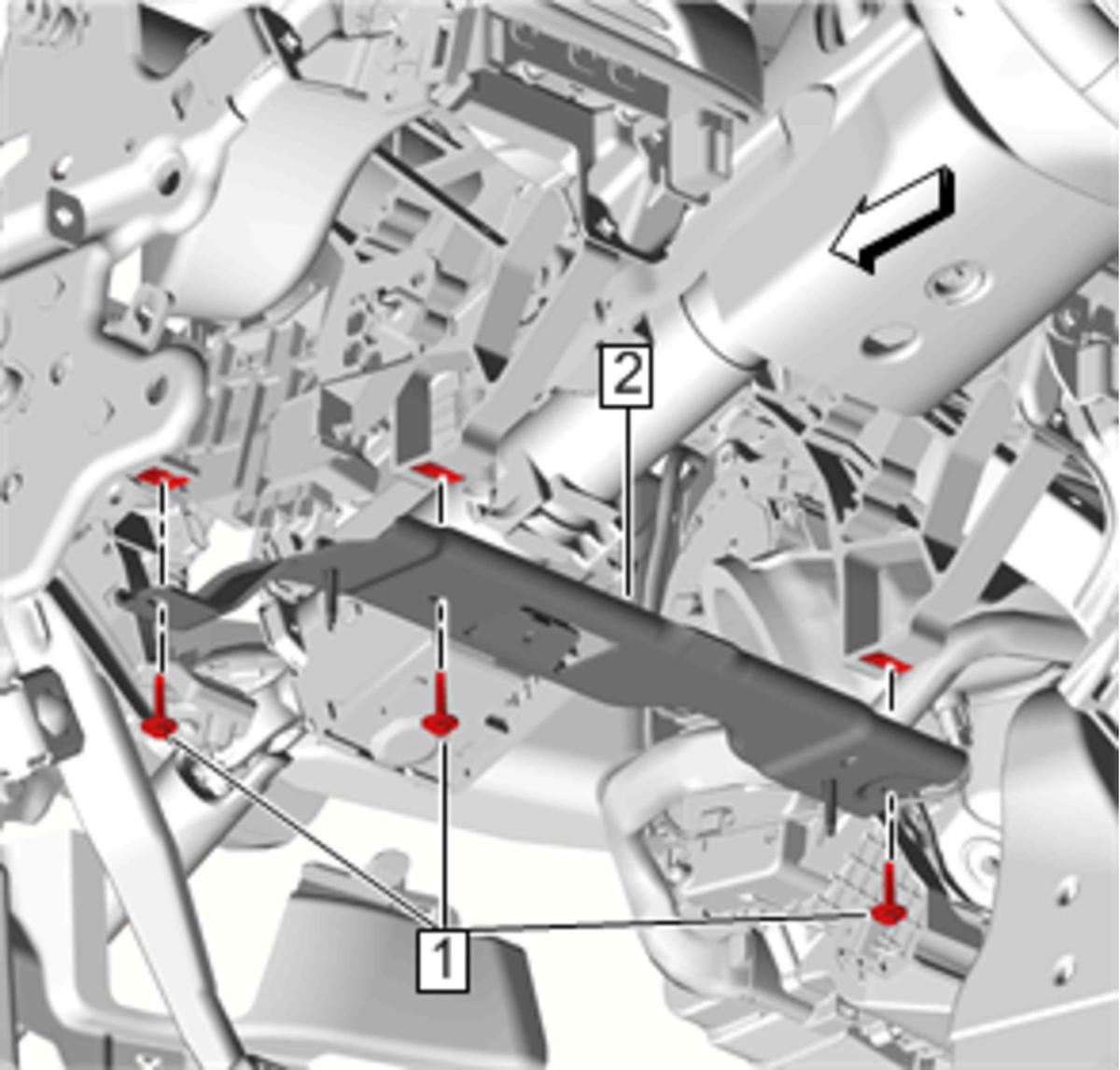

  1. GM4695166Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  2. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

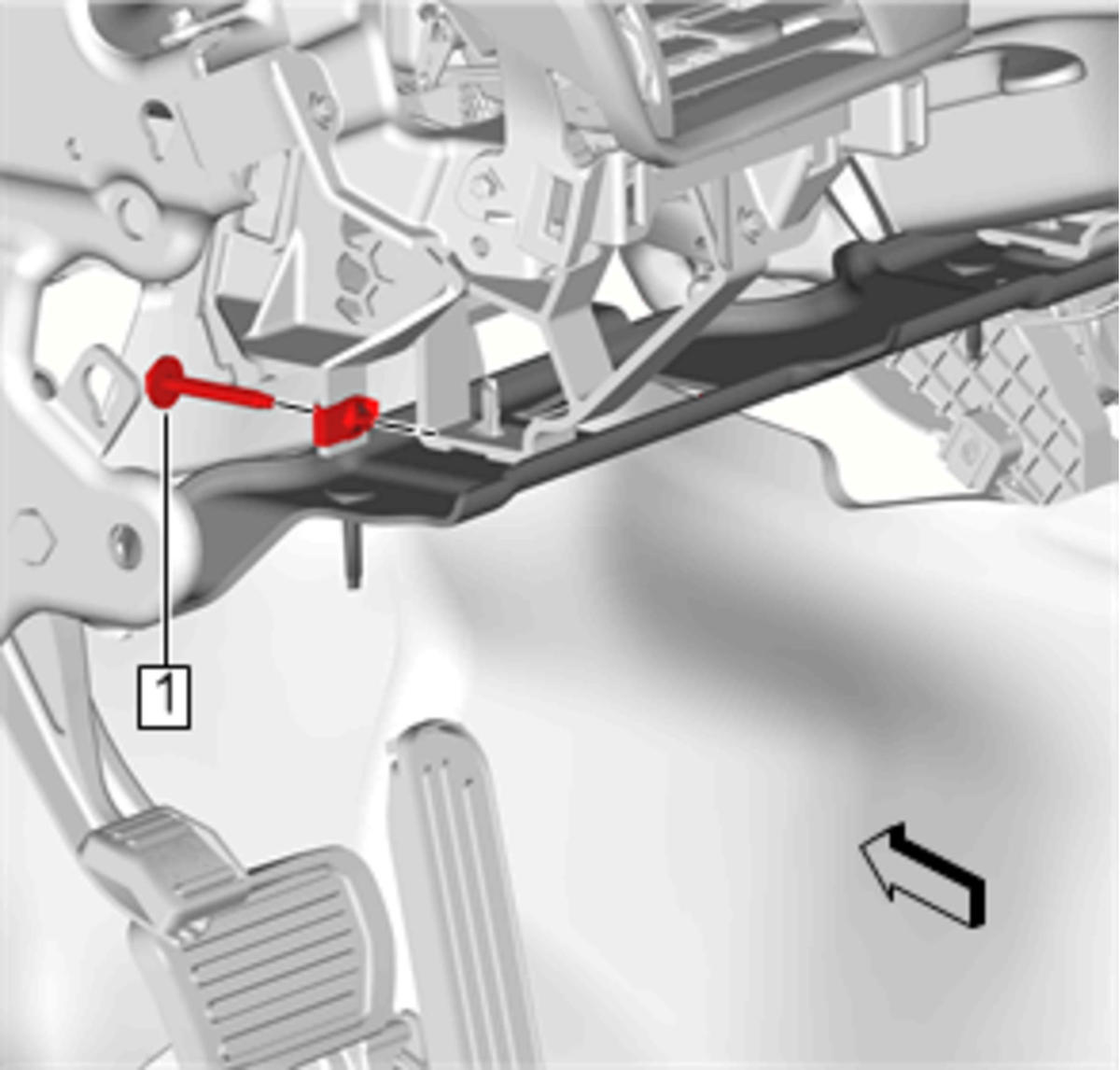

  3. GM4695165Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module Bracket Bolt (1) - Install and tighten 9 N.m (80 lb in)

  4. GM2811126Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

  5. GM4036213Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (3) - Install - Instrument Panel Knee Bolster Replacement

  6. GM2825771Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (1) - Install - Instrument Panel Lower Airbag Replacement - Driver Side

  7. GM2811429Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install - Instrument Panel Outer Trim Cover Replacement

  8. GM4025759Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)

  9. GM2809077Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

  10. GM2808734Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Side Trim Panel - Left Side (1) - Install - Front Floor Console Side Trim Panel Replacement - Left Side
