Instrument Panel Compartment Replacement

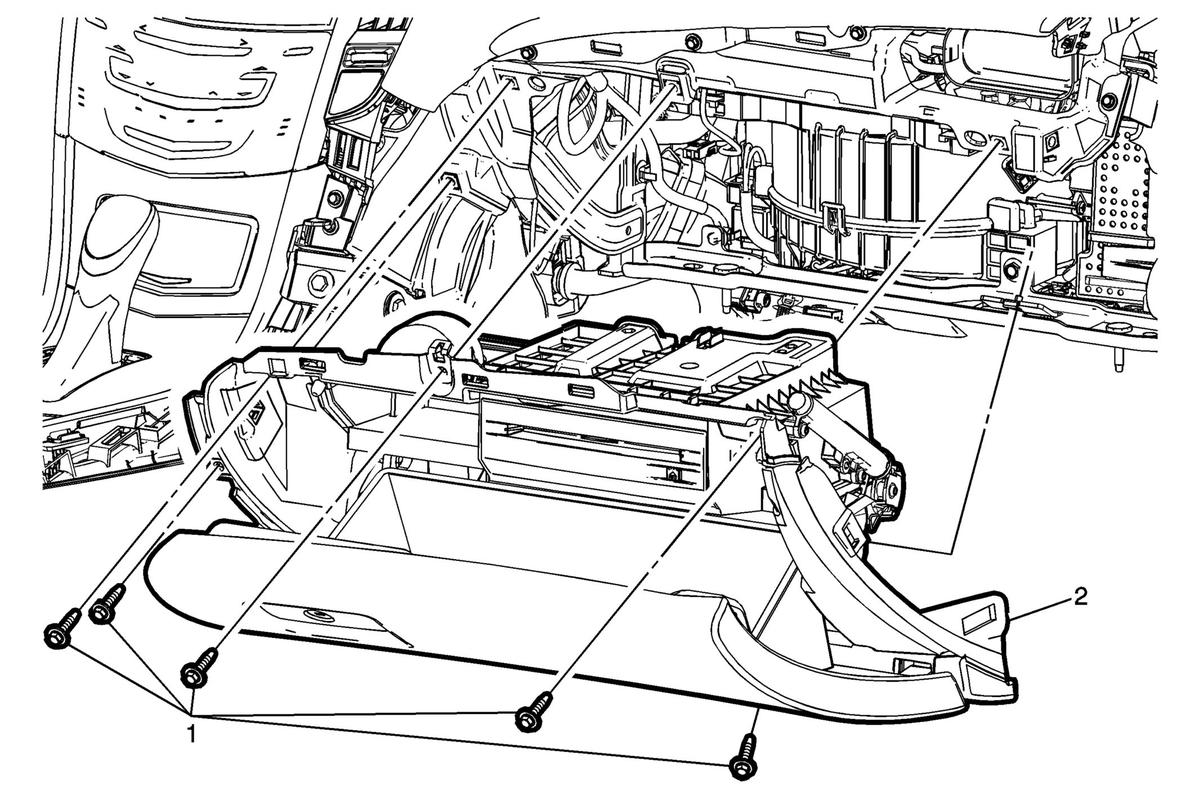

GM2826994Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the right instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Right Side .
  2. Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side .
  3. Remove the passenger inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
1 Instrument Panel Compartment Fasteners (Qty: 5)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Compartment

Procedures

  1. Disconnect electrical connections.
  2. Transfer all necessary components.
