Heater Inlet Hose Replacement (LTG)

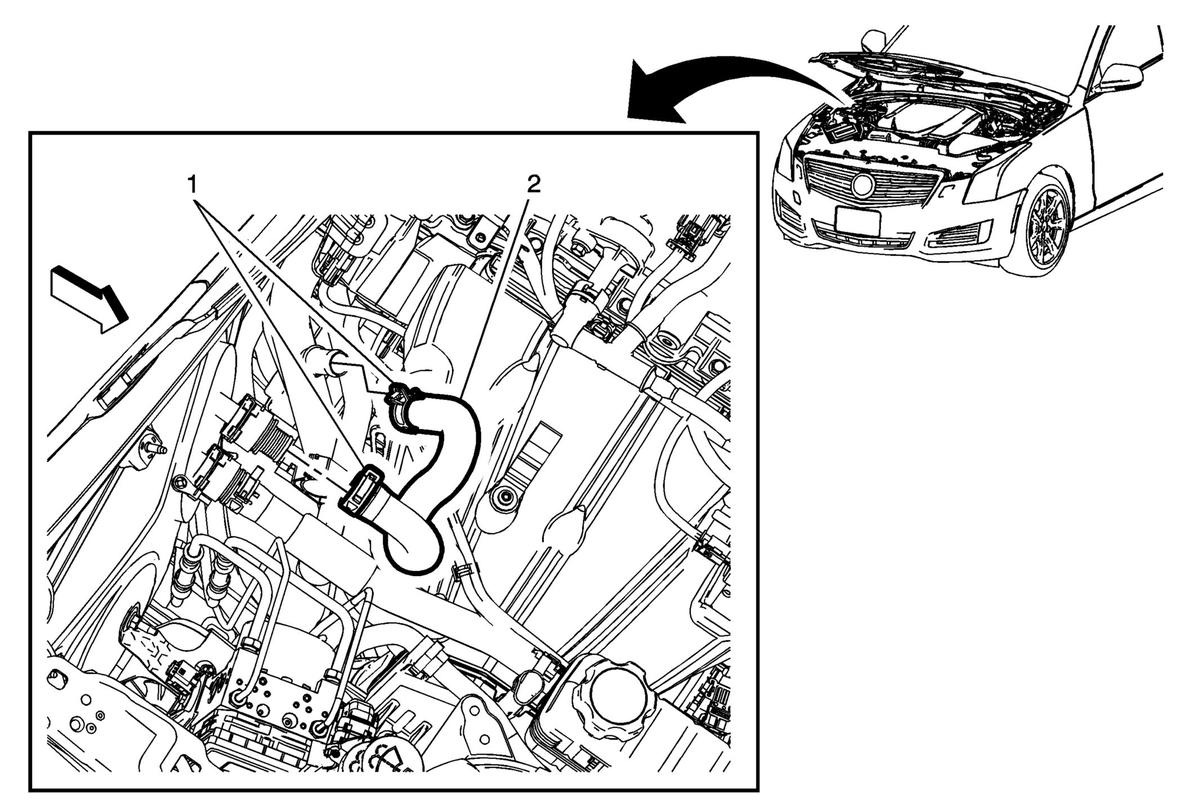

GM2854378Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the outer fuel pump insulator. Fuel Pump Insulator Replacement (Inner) , or Fuel Pump Insulator Replacement (Outer)
  2. Remove the right side front end sheet metal diagonal brace. Front End Sheet Metal Diagonal Brace Replacement - Right Side (ATS)
  3. Drain the cooling system. Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716)
1 Heater Outlet Hose Clamp (Qty: 2)
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Heater Outlet Hose

Procedure

  1. Unclip the heater outlet hose from the retainer.
  2. Fill coolant to the proper level. Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716)
  3. Inspect cooling system for leaks. Cooling System Leak Testing
