Front End Sheet Metal Diagonal Brace Replacement - Right Side (ATS)

Courtesy of GENERAL MOTORS COMPANY

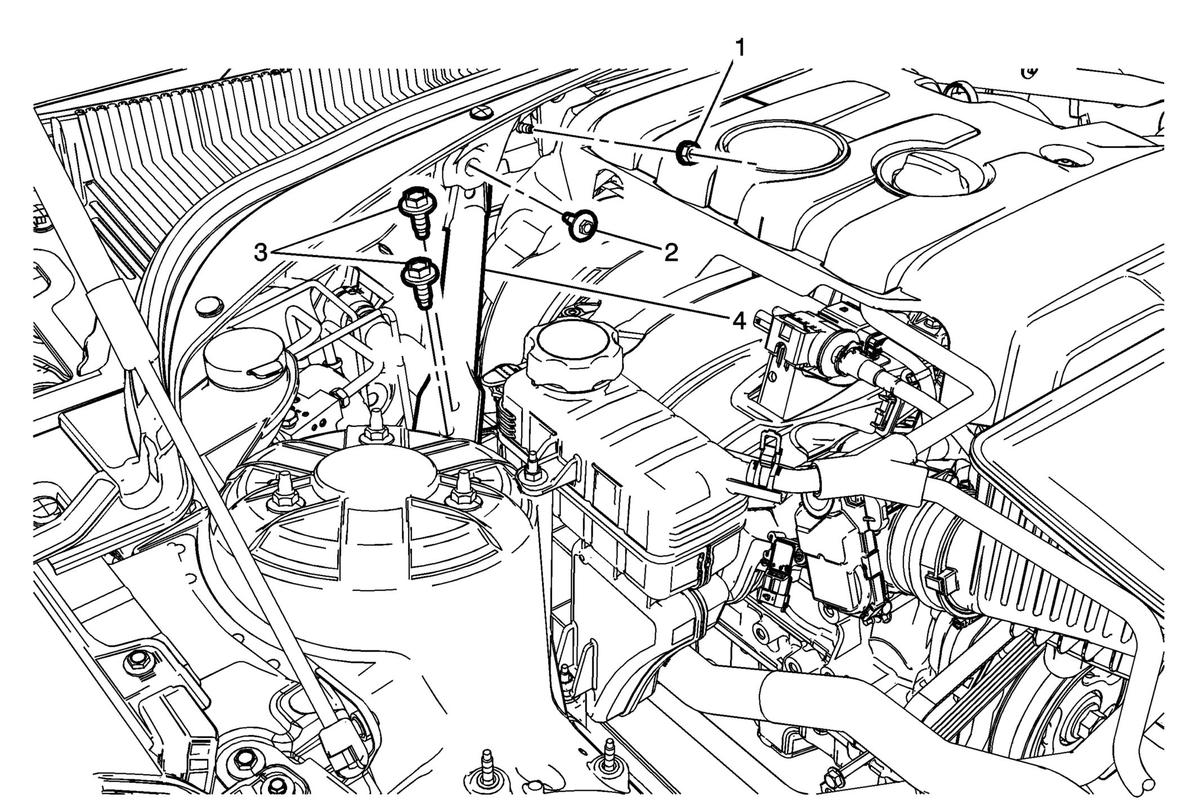

Callout	Component Name
Preliminary Procedure Remove the plenum front panel. Refer to Plenum Front Panel Replacement . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) , or Intake Manifold Cover Replacement (LGX) .
1	Front End Sheet Metal Diagonal Brace Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front End Sheet Metal Diagonal Brace Bolt - Rear Tighten 9 N.m (80 lb in)
3	Front End Sheet Metal Diagonal Brace Bolt - Front (Qty: 2) Tighten 22 N.m (16 lb ft)
4	Front End Sheet Metal Diagonal Brace
