Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Non-Tamperproof) , or Air Cleaner Outlet Duct Replacement (Tamperproof) . Disconnect the mass airflow sensor electrical connector.

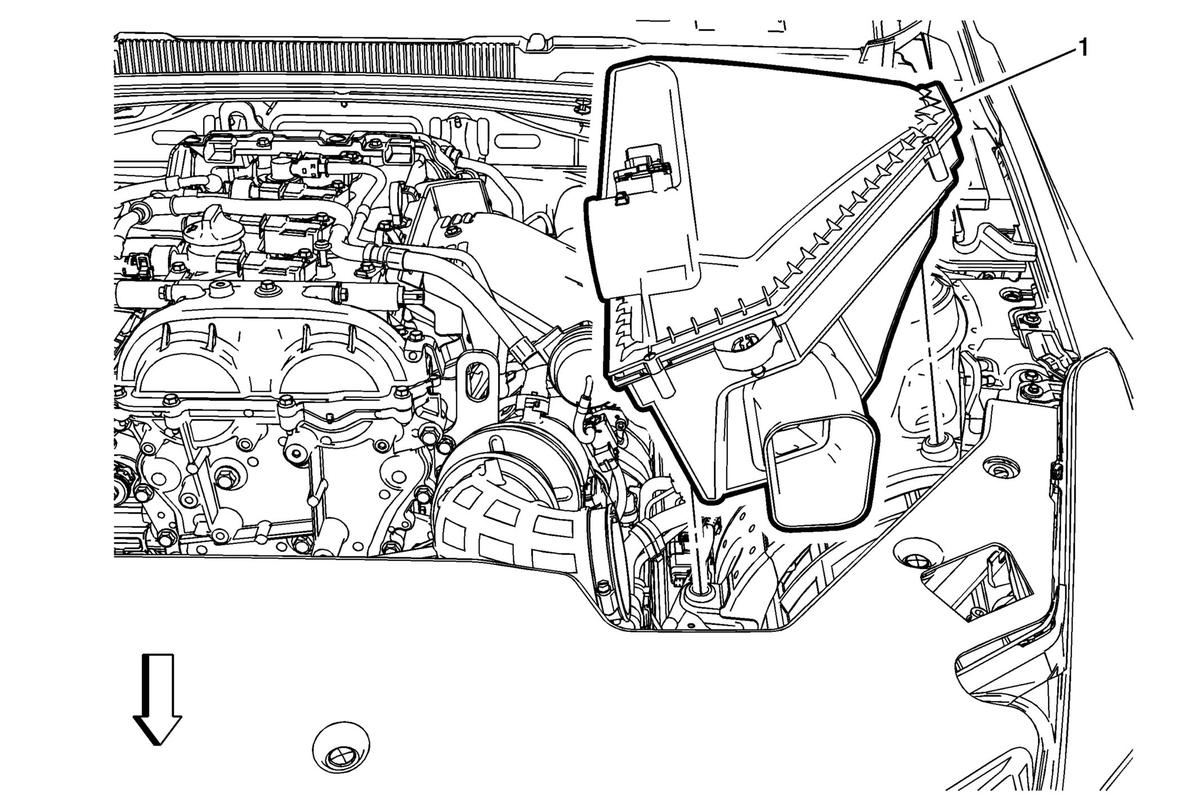

1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Non-Tamperproof) , or Air Cleaner Outlet Duct Replacement (Tamperproof) .
Disconnect the mass airflow sensor electrical connector.

Air Cleaner Assembly

Procedure
