Air Cleaner Outlet Duct Replacement (Non-Tamperproof)
WARNING: This page is about a different variant/trim than selected.

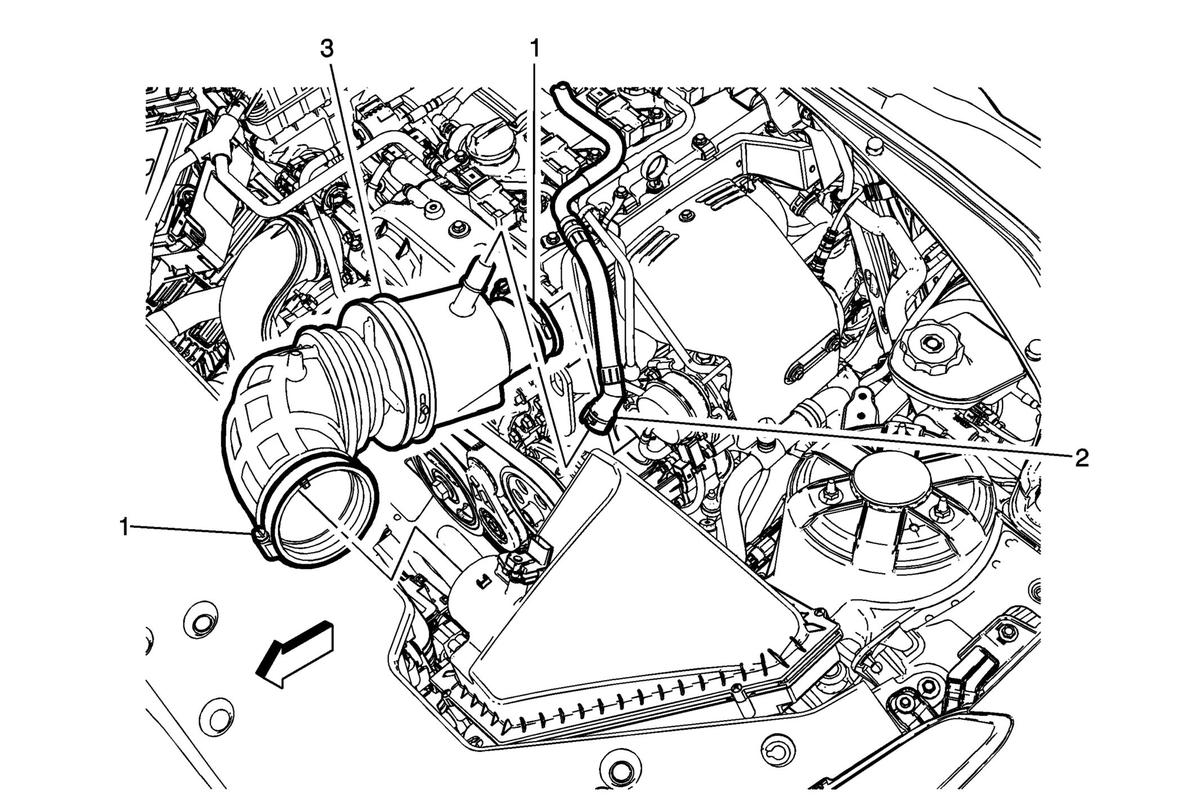

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp [2x]
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 4 N.m (35 lb in) |
| 2 | Positive Crankcase Ventilation Tube Procedure Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
NOTE:
The Positive Crankcase Ventilation (PCV) tube has a tamper-proof fitting and cannot be disconnected without damage to the PCV tube. Only disconnect the PCV tube if replacing the air cleaner outlet duct. If repositioning the air cleaner outlet duct, leave the PCV tube connected. |
| 3 | Air Cleaner Outlet Duct Procedure Disconnect the MAF sensor harness from the air cleaner outlet duct. |
