Air Cleaner Assembly Replacement (LGX)

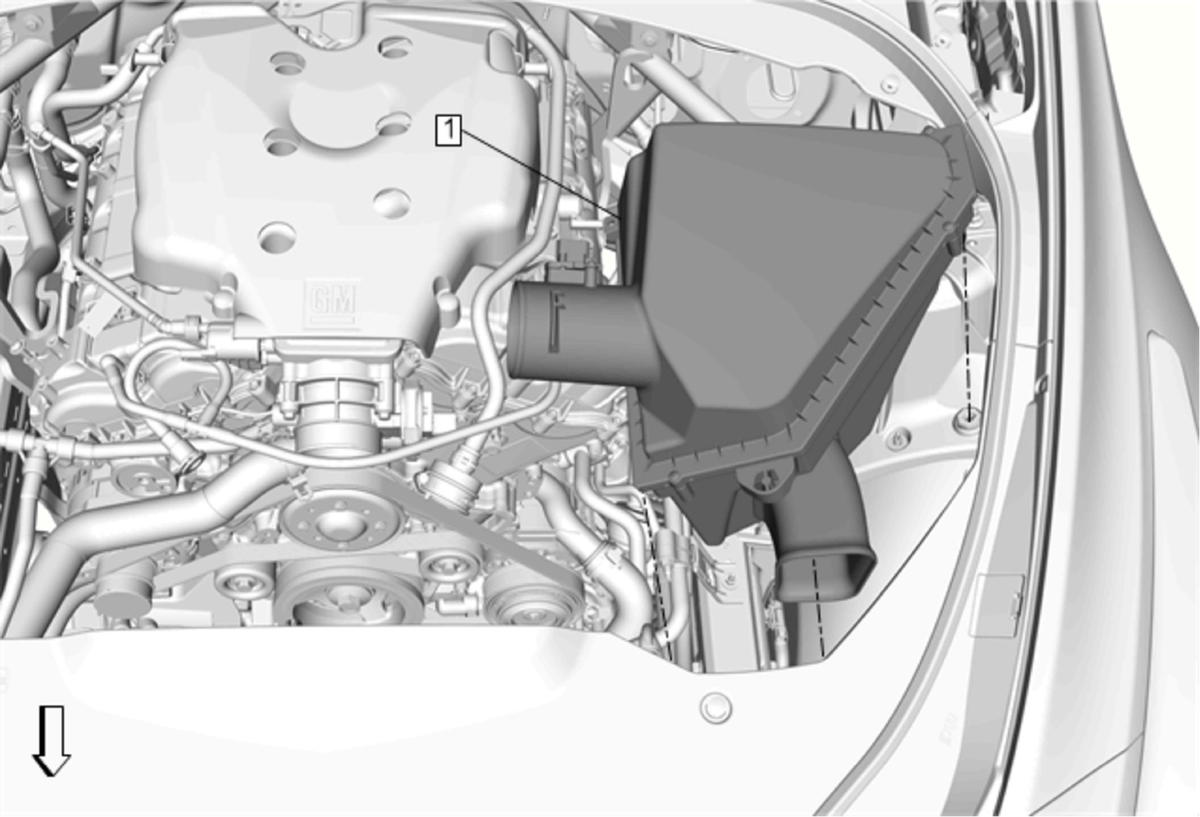

GM4082712Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement (LGX)
  2. Disconnect the electrical connector and harness retainers.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
