Front End Sheet Metal Diagonal Brace Replacement - Left Side (ATS-V)

Courtesy of GENERAL MOTORS COMPANY

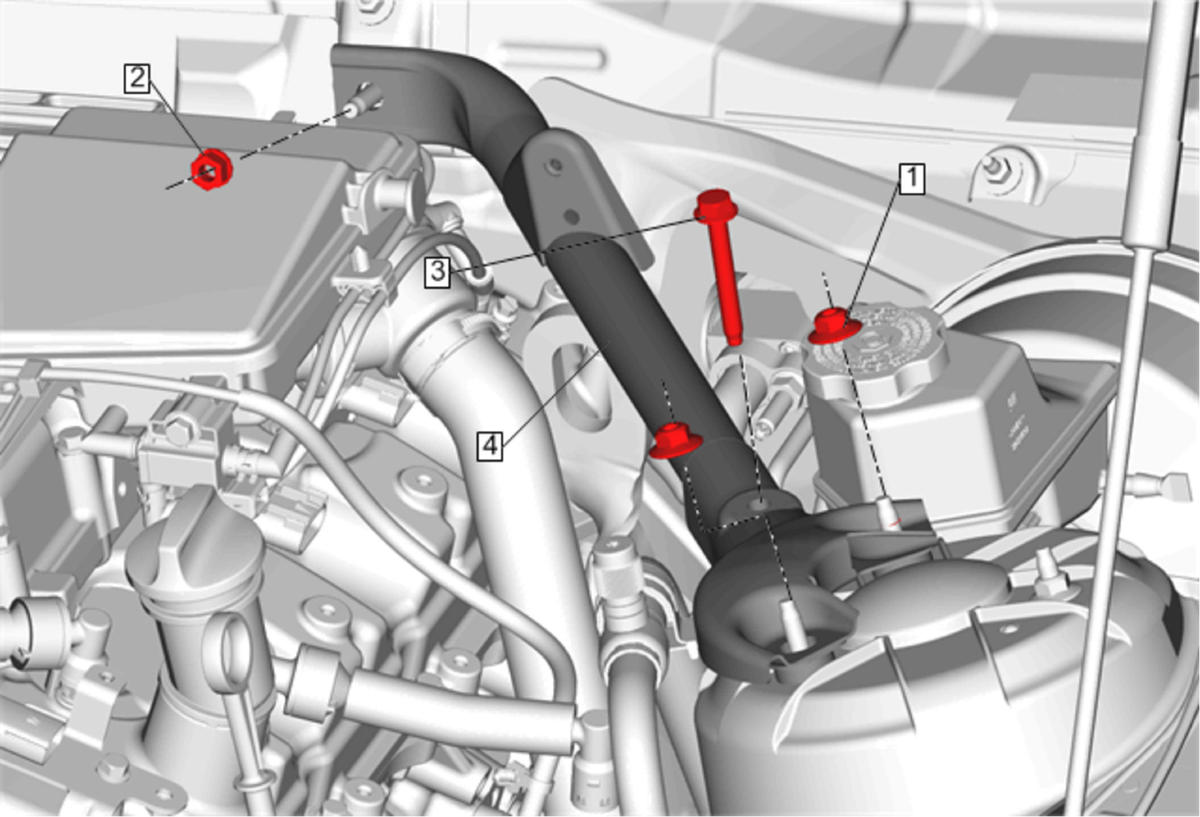

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement (LF4) Plenum Front Panel Replacement
1	Front Suspension Upper Mounting Nut [2x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Front End Sheet Metal Diagonal Brace Nut Tighten  22 N.m (16 lb ft)
3	Front End Sheet Metal Diagonal Brace Bolt Tighten  22 N.m (16 lb ft)
4	Front End Sheet Metal Diagonal Brace
