Intake Manifold Cover Replacement (LF4)

Courtesy of GENERAL MOTORS COMPANY

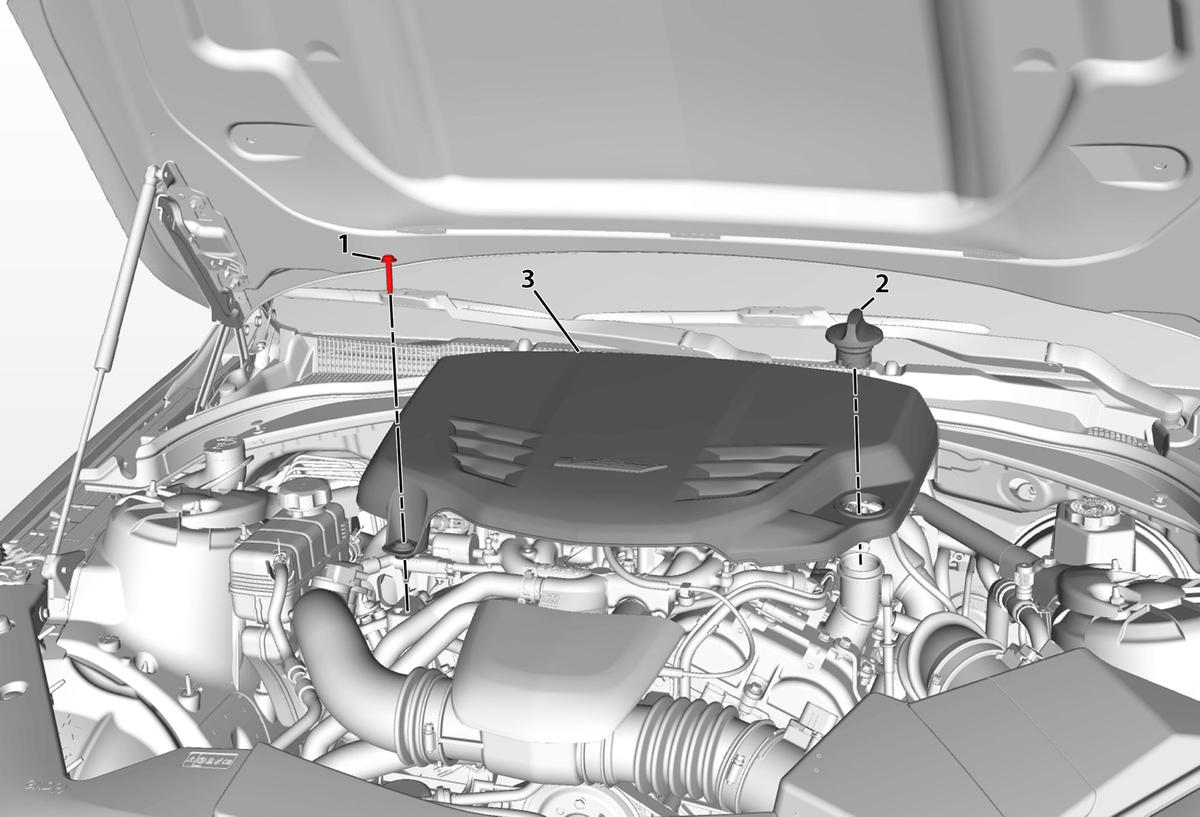

Callout	Component Name
1	Intake Manifold Cover Fastener Tighten  9 N.m (80 lb in)
2	Oil Cap Procedure  Remove the oil cap before removing the intake manifold cover.
3	Intake Manifold Cover Procedure  Pull the intake manifold cover upward to remove.
