Air Inlet Grille Panel Replacement

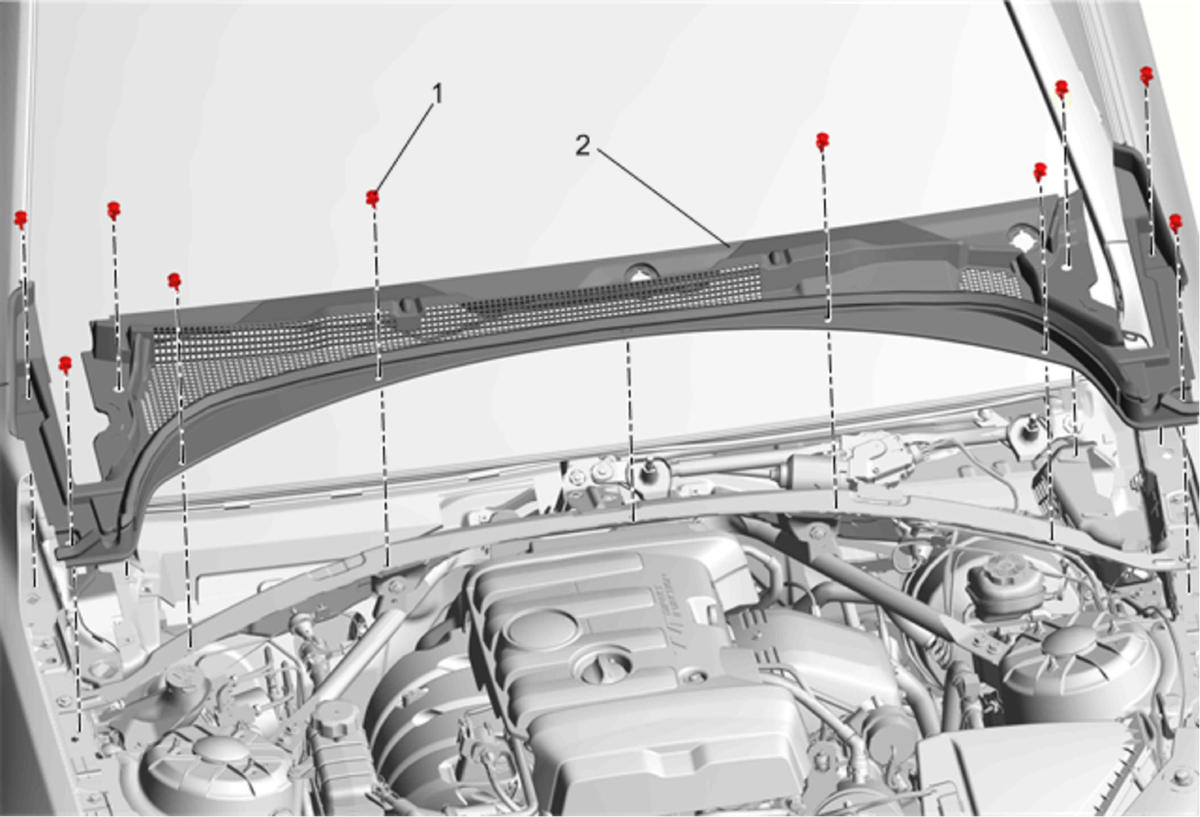

GM3776163Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement .
  2. Remove the air inlet grille panel extensions. Refer to Air Inlet Grille Panel Extension Replacement .
1 Air Inlet Grille Panel Retainer (Qty: 10)
2 Air Inlet Grille Panel

Procedure

  1. Using an appropriate tool, disengage the center air inlet grille panel retainer.
  2. Using an appropriate tool, release the air inlet grille panel from the windshield lower molding.
  3. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  4. Disconnect the windshield washer nozzle hose from the windshield washer nozzle hose connector hose.
  5. Transfer parts as needed.
