Preliminary Procedure
Open the hood. |

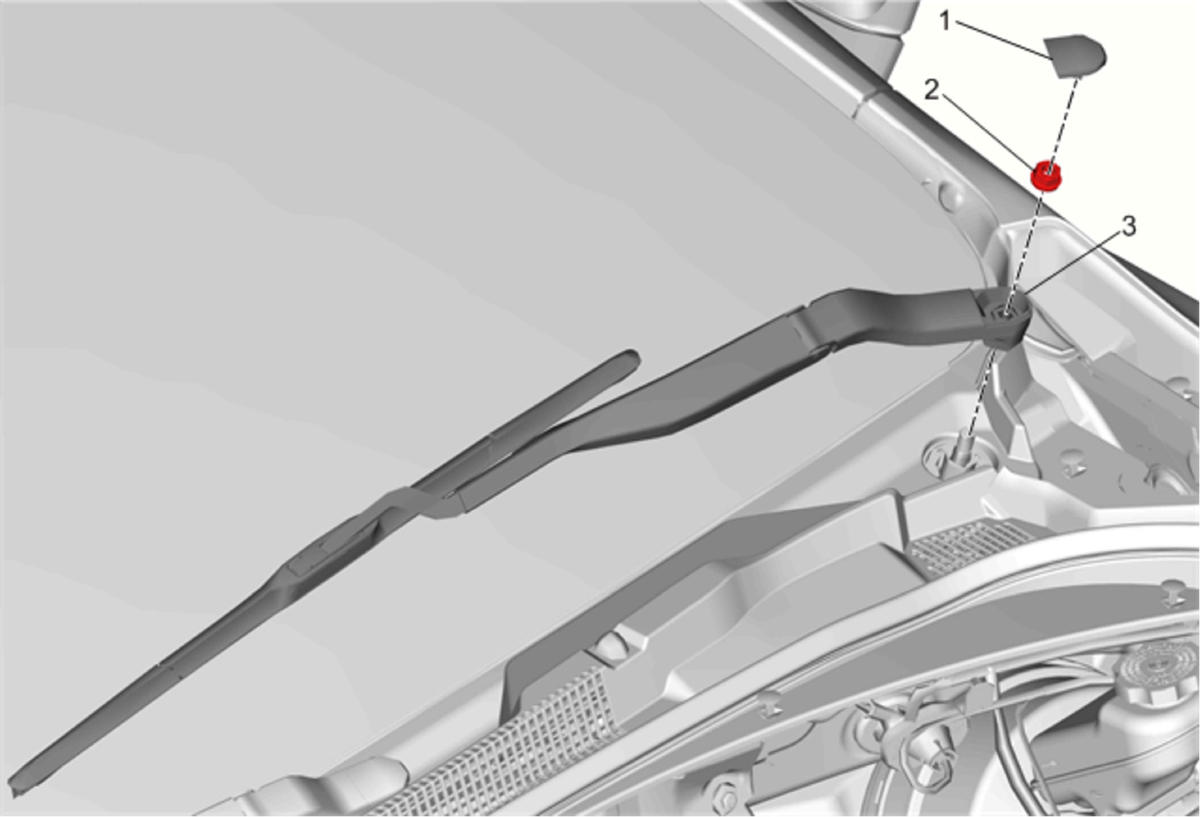

| 1 |
Windshield Wiper Arm Nut Cap
Procedure
Using an appropriate tool, release the finish cap from the wiper arm assembly. |
| 2 |
Windshield Wiper Arm Nut
Tighten
30 N.m (22 lb ft) |
| 3 |
Windshield Wiper Arm Procedure
- Using a battery terminal puller, grasp the wiper arm flange and remove the wiper arm from the windshield wiper transmission pivot shaft.
- Clean the pivot shaft knurls with a soft wire brush before installing a new windshield wiper arm.
- When installing, align the wiper arm to the windshield alignment marks on the windshield blackout area. Refer to Windshield Wiper Arm Adjustment .
- When installing, hold the windshield wiper arm in the aligned position, depress the wiper arm knuckle joint and torque the wiper arm nut as specified above.
|
