Air Inlet Grille Panel Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

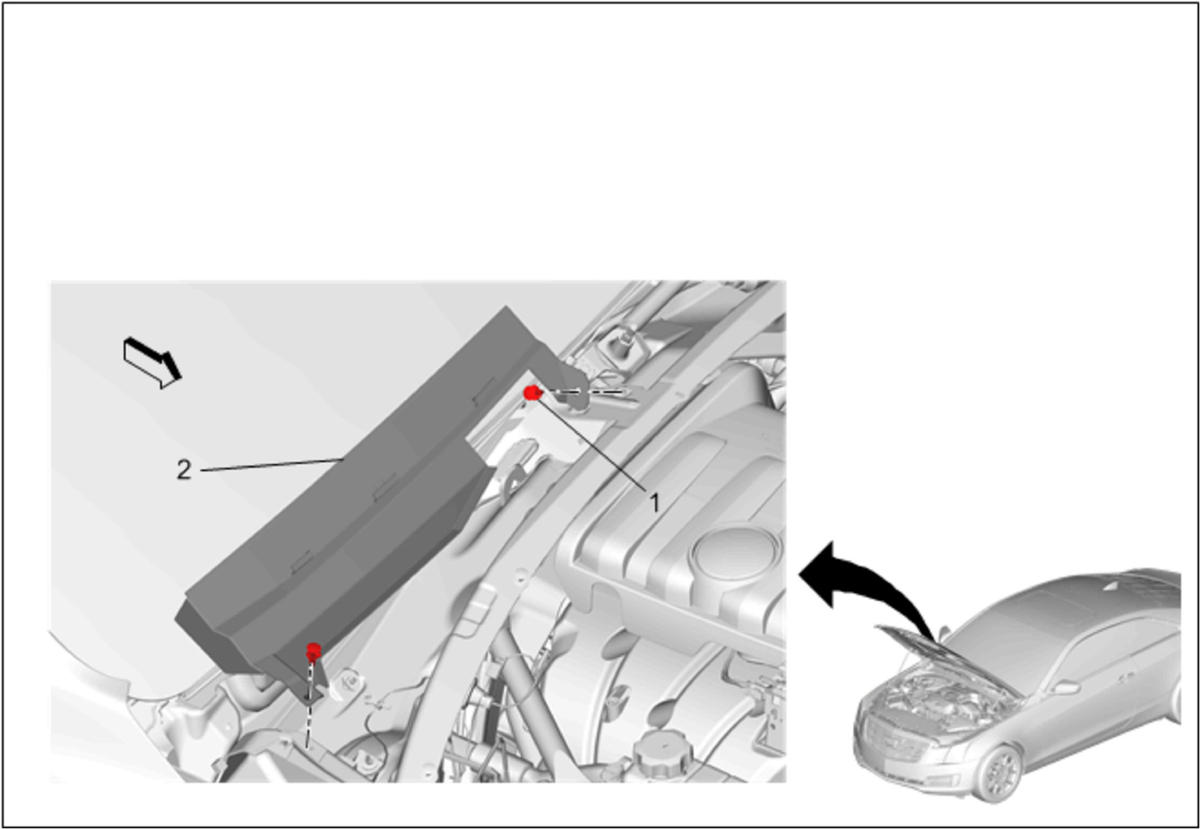

Callout	Component Name
Preliminary Procedure  Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Air Inlet Grille Panel Air Deflector Retainer (Qty: 2)
2	Air Inlet Grille Panel Air Deflector Procedure  Pull air inlet grille panel air deflector forward so retaining tabs release from shroud upper panel.
