Rear Compartment Lid Replacement

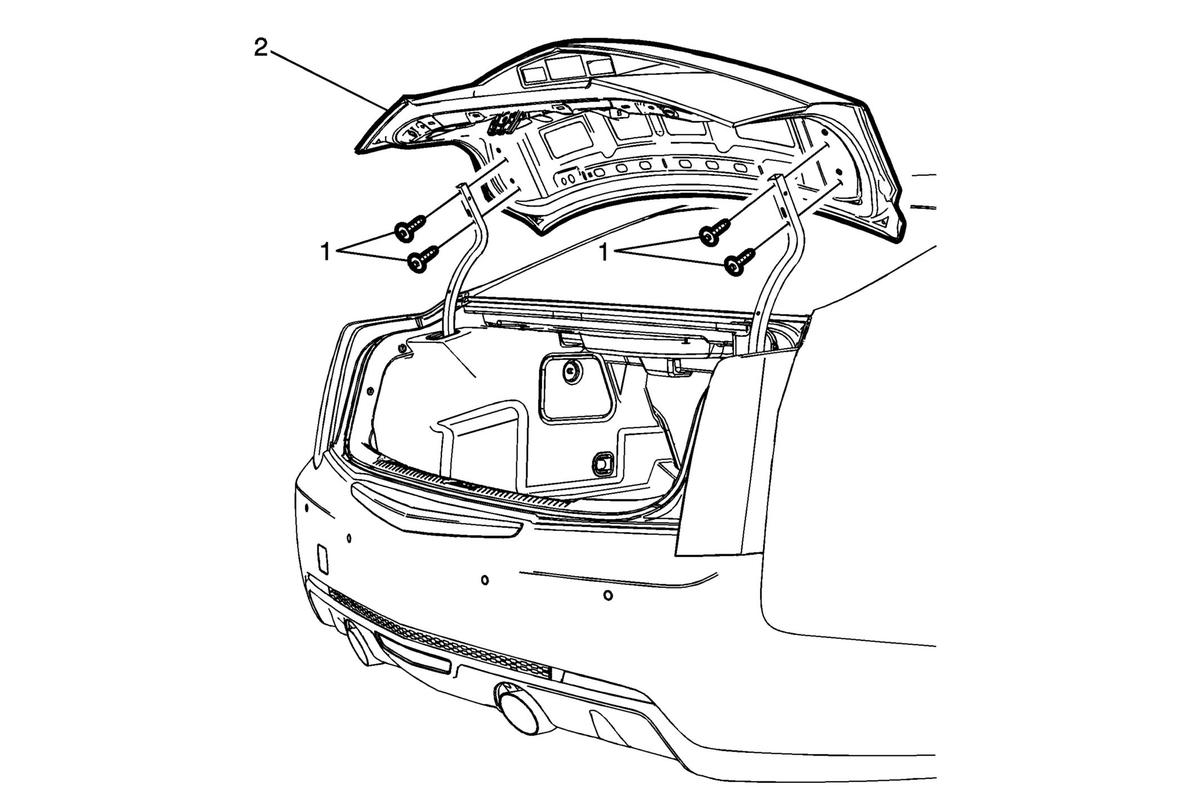

GM2810385

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

1

Rear Compartment Lid Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Rear Compartment Lid

Procedure

Disconnect the electrical connector.
Remove the rear compartment with the aid of an assistant.
Transfer parts as needed.
Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment (ATS) , or Rear Compartment Lid Adjustment (ATS-V) .
