Plenum Front Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

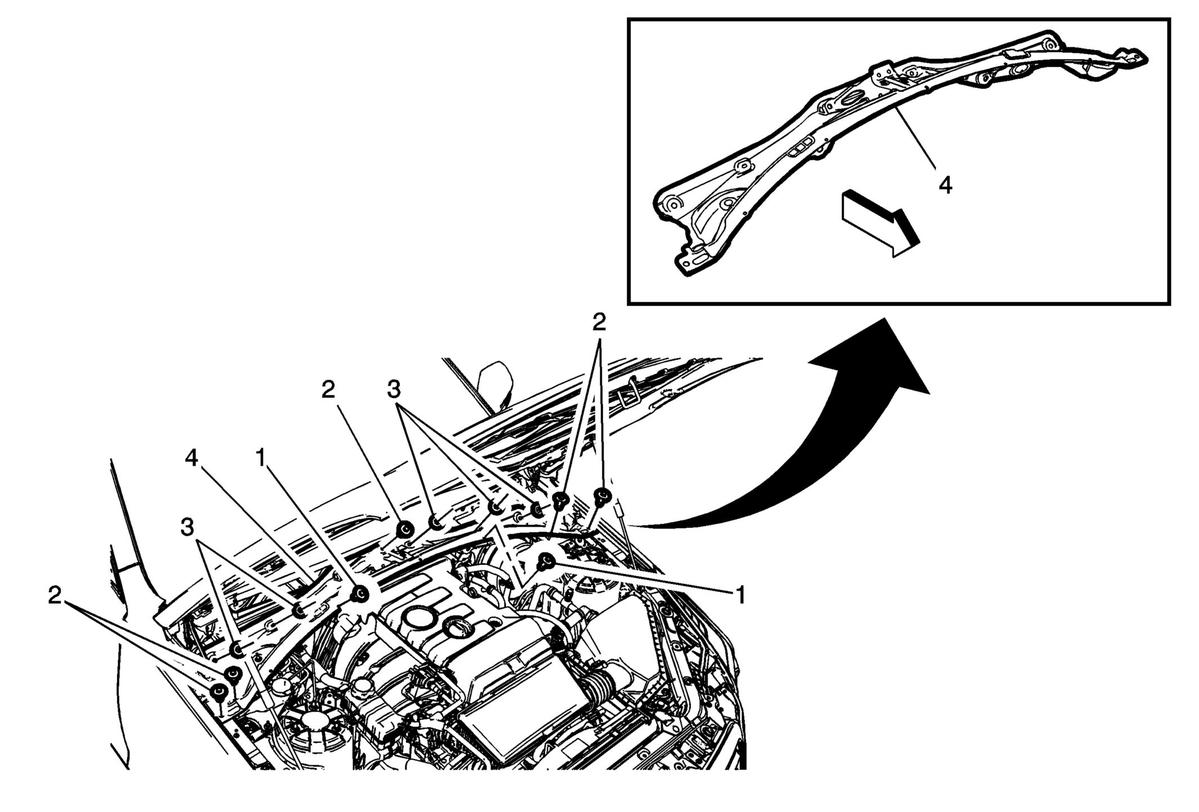

Callout	Component Name
Preliminary Procedures Remove the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement . Remove the air inlet grille panel air deflector. Refer to Air Inlet Grille Panel Air Deflector Replacement . Remove the left plenum side panel. Refer to Plenum Side Panel Replacement - Left Side . Remove the right plenum side panel. Refer to Plenum Side Panel Replacement - Right Side .
1	Diagonal Brace to Plenum Bolt (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Plenum Front Panel Bolt (Qty: 5) Tighten 9 N.m (80 lb in)
3	Plenum Front Panel Nut (Qty: 6) Tighten 9 N.m (80 lb in)
4	Plenum Front Panel Procedure Remove the electrical harness grommet from the panel. Ensure all seals are in place before installation.
