Front Floor Panel Carpet Replacement - Right Side

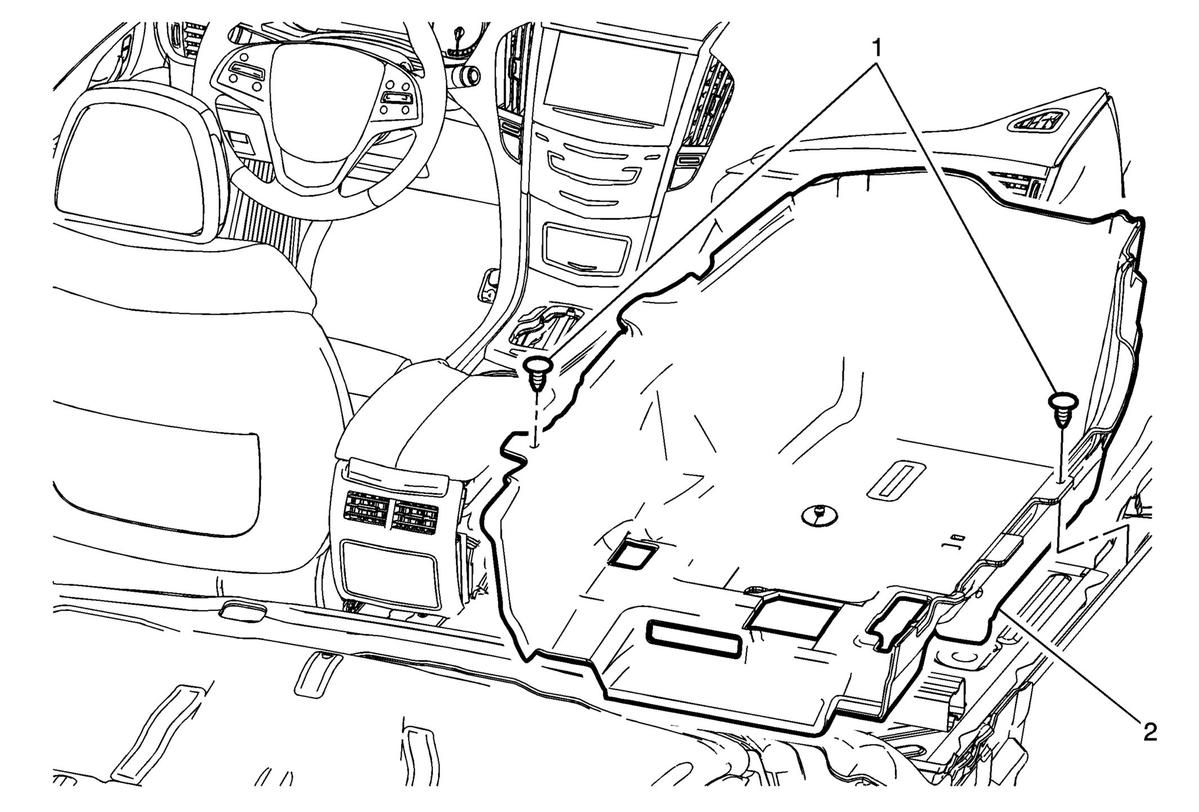

GM2811699Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the passenger seat. Refer to Front Seat Removal and Installation .
  2. Remove the passenger side front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
  3. Remove the front floor lower console. Refer to Front Floor Lower Console Replacement .
1 Floor Carpet Retainer (Qty: 2)
Procedure
Use a plastic flat-bladed tool to aid in the removal of the push-in retainers.
2 Front Floor Panel Carpet Assembly - Right Side
