Vehicle Performance Data Recorder Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

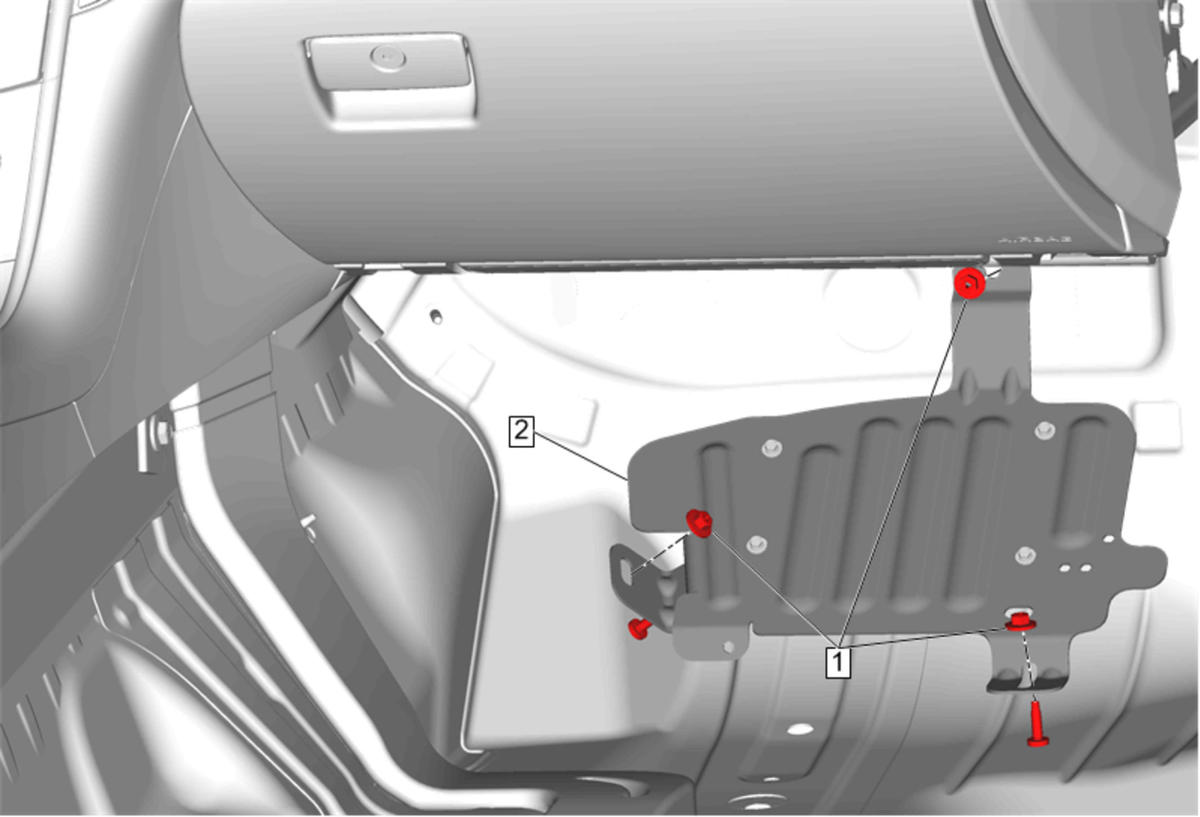

Callout	Component Name
Preliminary Procedure Reposition the front floor panel carpet as necessary. Front Floor Panel Carpet Replacement - Right Side
1	Video Display Bracket Nut [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Vehicle Performance Data Recorder Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Reposition the front floor panel carpet as necessary. Front Floor Panel Carpet Replacement - Right Side

Video Display Bracket Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Performance Data Recorder Bracket

Procedure
