Liftgate Release Switch Replacement (Liftgate With DRZ and UVH)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Closure Center with License Plate Applique Replacement

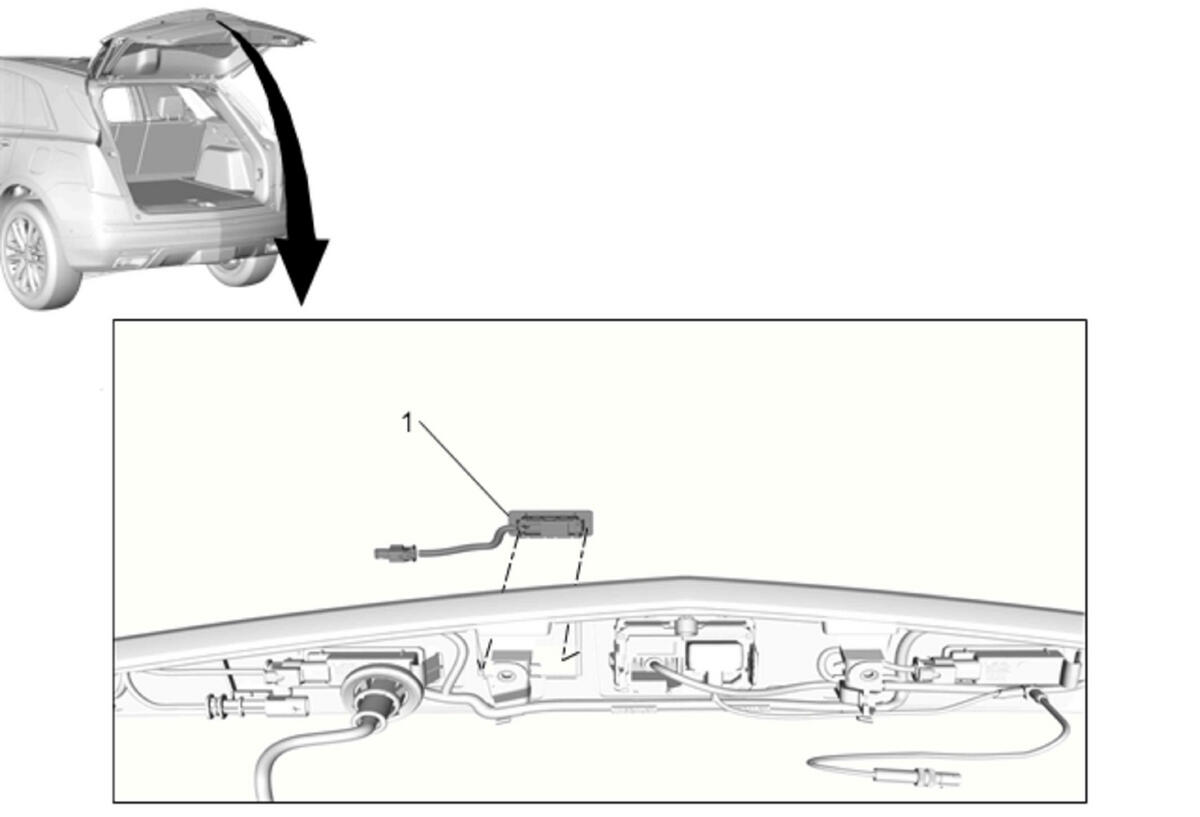

1	Liftgate Release Switch Procedure Disconnect the electrical connector. Release the liftgate release switch retainers and push out from the rear closure center with license plate applique.

Callout

Component Name

Liftgate Release Switch

Procedure

Disconnect the electrical connector.
Release the liftgate release switch retainers and push out from the rear closure center with license plate applique.
