Valve Rocker Arm Oil Control Valve Replacement (Bank 2)

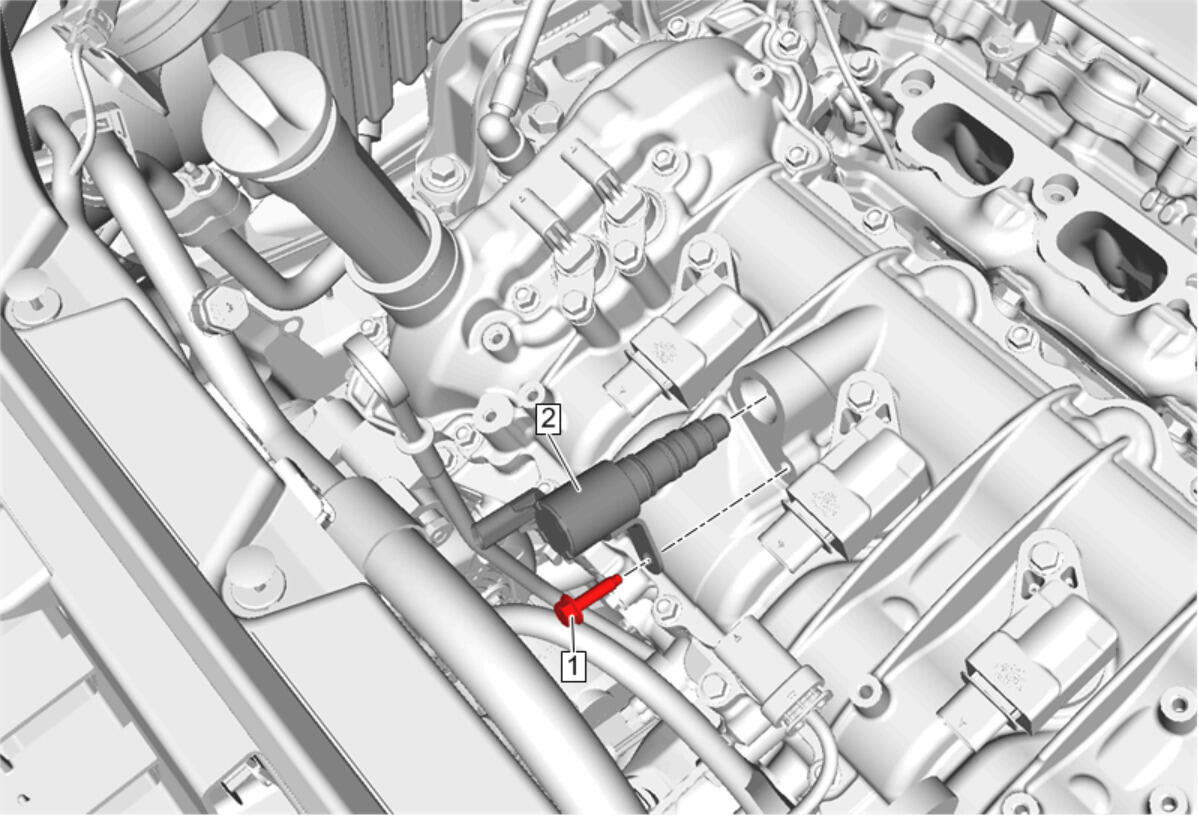

| Callout | Component Name |
|---|---|
| Preliminary Procedure Camshaft Housing Cover Insulator Replacement - Left Side |
|
| 1 | Valve Rocker Arm Oil Control Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Valve Rocker Arm Oil Control Valve Procedure Inspect the O-ring and replace if necessary.[3x]
NOTE:
Lubricate the O-rings with engine oil. |
