Center Console Harness Routing

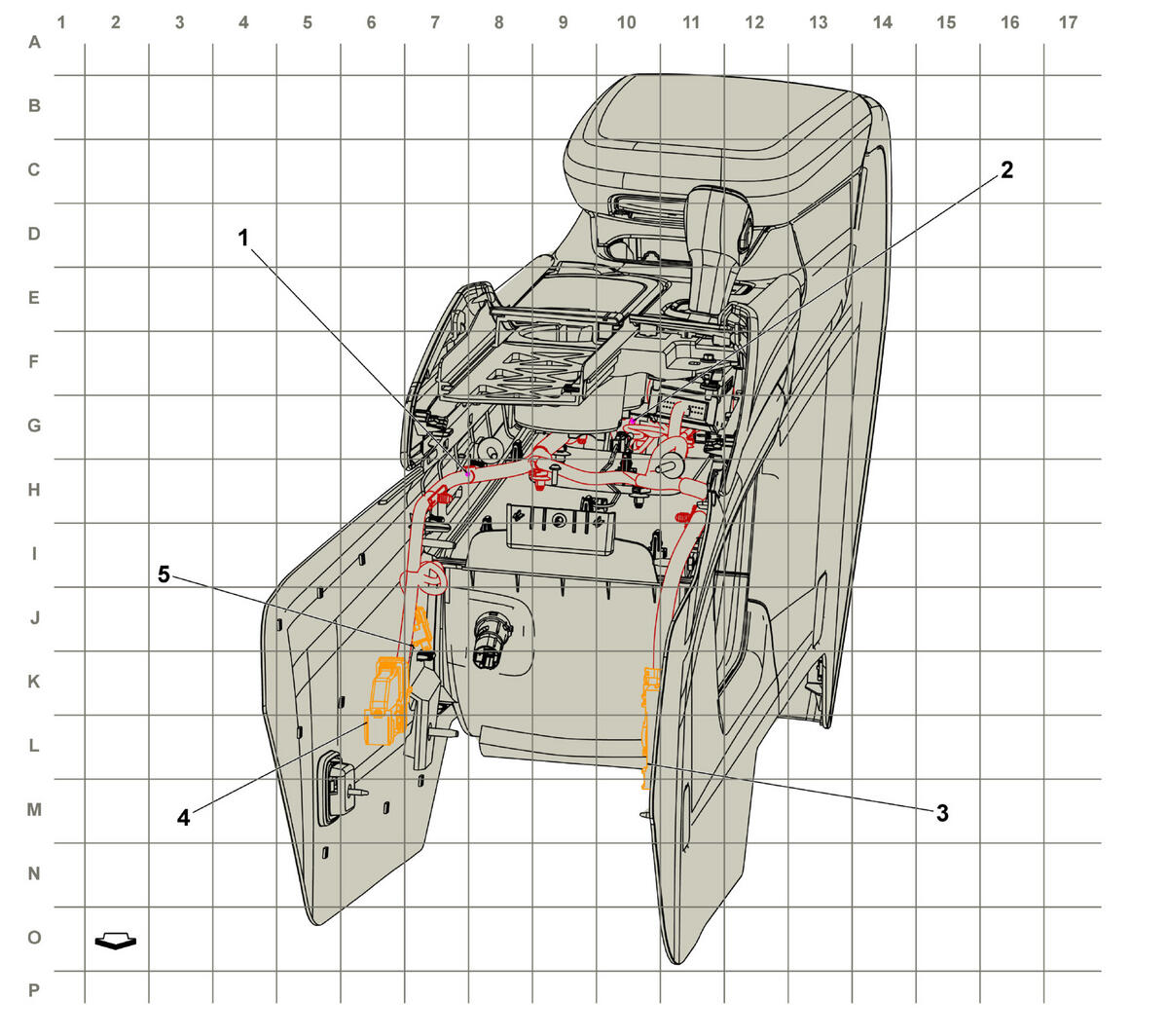

GM4277821Courtesy of GENERAL MOTORS COMPANY
Items
1 J338 Console Harness
2 J339 Console Harness
3 X231 Floor Console Harness to Body Harness X231 Floor Console Harness to Body Harness
4 X232 Floor Console Harness to Instrument Panel Harness X232 Floor Console Harness to Instrument Panel Harness
5 X234 Floor Console Harness to Instrument Panel Harness (USR)
