X232 Floor Console Harness to Instrument Panel Harness

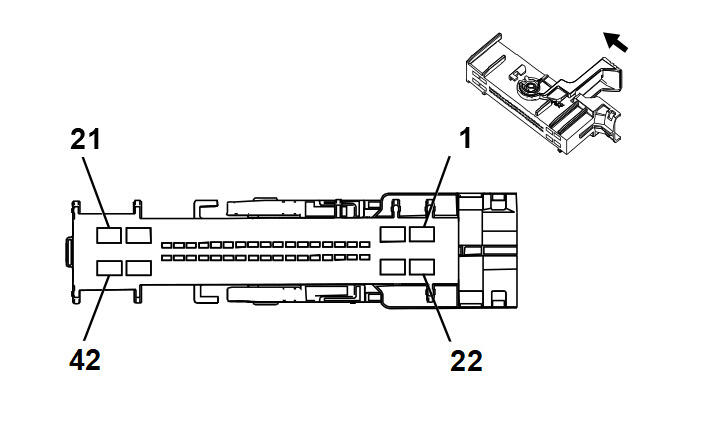

GM3955711Courtesy of GENERAL MOTORS COMPANY

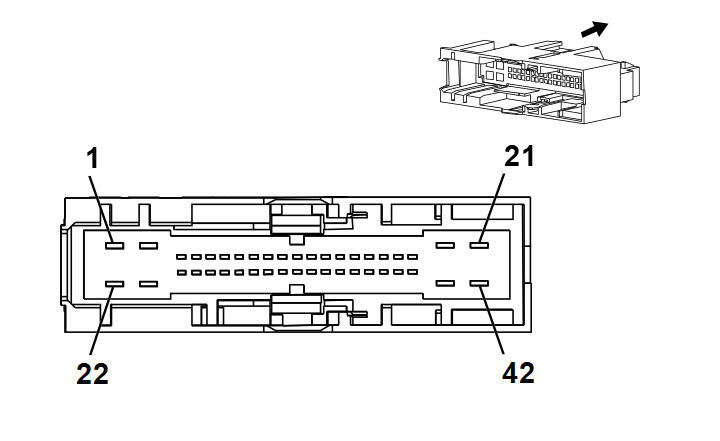

GM3240116Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 13597189
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 42-Way F 1.2, 2.8 Series (GY)
 Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 33155179
  • Service Connector: 13586233
  • Description: 42-Way M 0.64, 2.8 Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-16 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) No Tool Required Not Required Not Required Not Required Not Required
III 13575821 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
IV 13575823 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
V 13575824 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
VI 19333310 J-35616-65B (LT BU) J-38125-12A Not Available Not Available Not Available Not Available
VII 19368571 J-35616-65B (LT BU) J-38125-553 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 - 2 - - - - - Not Occupied 1 - 2 - - - - -
3 0.35 BN 404 I - Upper Air Temperature Sensor Signal 3 0.35 BN 404 VI CJ4
4 0.35 BK/BN 6102 I CJ4 Inside Air Temperature Sensor Low Reference 4 0.35 BK/BN 6102 VI ASV+CJ4
5 - 6 - - - - - Not Occupied 5 - 6 - - - - -
7 0.35 YE 6817 I - LED Backlight Dimming Control 7 0.35 YE 6817 VI -
8 0.35 BU/PU 1788 I - Traction Control Switch Signal 1 8 0.35 BU/PU 1788 VI -
9 0.35 GY/BK 3276 I - Vehicle Anti-Theft System Immobilizer Control 9 0.35 GY/BK 3276 VI -
10 0.35 GN/GY 3277 I - Vehicle Anti-Theft System Immobilizer Low Reference 10 0.35 GN/GY 3277 VI -
11 0.35 GN/YE 7531 I CJ4 Local Interconnect Network Serial Data Bus 9 11 0.35 GN/YE 7531 VI C77+IO5/IO6
12 - 14 - - - - - Not Occupied 12 - 14 - - - - -
15 0.35 PU/GY 1039 I - Run/Crank Ignition 1 Voltage 15 0.35 PU/GY 1039 VI CJ4
16 0.35 BK 1650 I CJ4 Ground 16 0.35 BK 1650 VI CJ4
17 0.35 WH 6816 I F48 Indicator Dimming Control 17 0.35 WH 6816 VI -
18 0.75 PU 4601 I - Retained Accessory Power Fused Control 18 0.75 PU 4601 VII -
19 0.35 RD/PU 340 I - Battery Positive Voltage 19 0.5 RD/PU 340 VI USR
20 1.5 BK 1650 II - Ground 20 1.5 BK 1650 V -
21 - 32 - - - - - Not Occupied 21 - 32 - - - - -
33 0.35 GN/PU 7533 I - Local Interconnect Network Serial Data Bus 11 33 0.35 GN/PU 7533 VI -
34 - - - - - Not Occupied 34 - - - - -
35 0.35 GN/BK 2211 I CJ4 Rear Blower Motor Speed Control 35 0.35 GN/BK 2211 VI CJ4
36 - 37 - - - - - Not Occupied 36 - 37 - - - - -
38 0.35 BK 1750 I - Ground 38 0.35 BK 1750 VI -
39 - - - - - Not Occupied 39 - - - - -
40 0.5 PU 2801 I - Retained Accessory Power Fuse Ignition 40 0.35 PU 2801 VI USS
41 0.5 RD/GN 1840 II MRC Battery Positive Voltage 41 0.5 RD/GN 1840 III MRC
42 0.5 PU 4601 II - Retained Accessory Power Fused Control 42 0.75 PU 4601 IV K4C
