Instrument Panel Airbag Arming Status Display Replacement

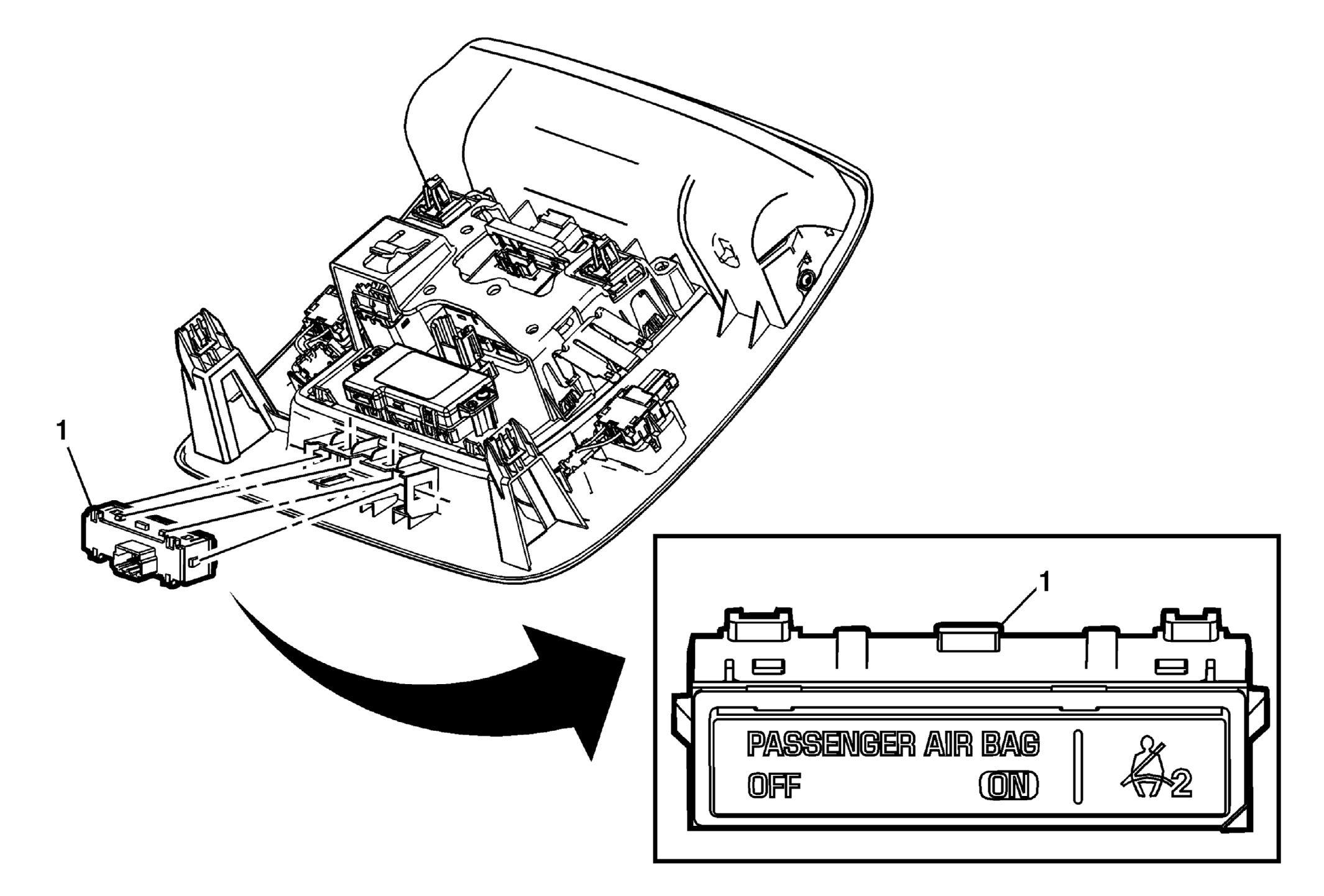

Fig 1: Instrument Panel Airbag Arming Status Display
GM3273002Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .
1 Instrument Panel Airbag Arming Status Display Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Depress the 4 tabs to release from the roof console.
