Input Shaft and Planetary Assembly Removal
WARNING: This page is about a different variant/trim than selected.
Input Shaft and Planetary Assembly Removal

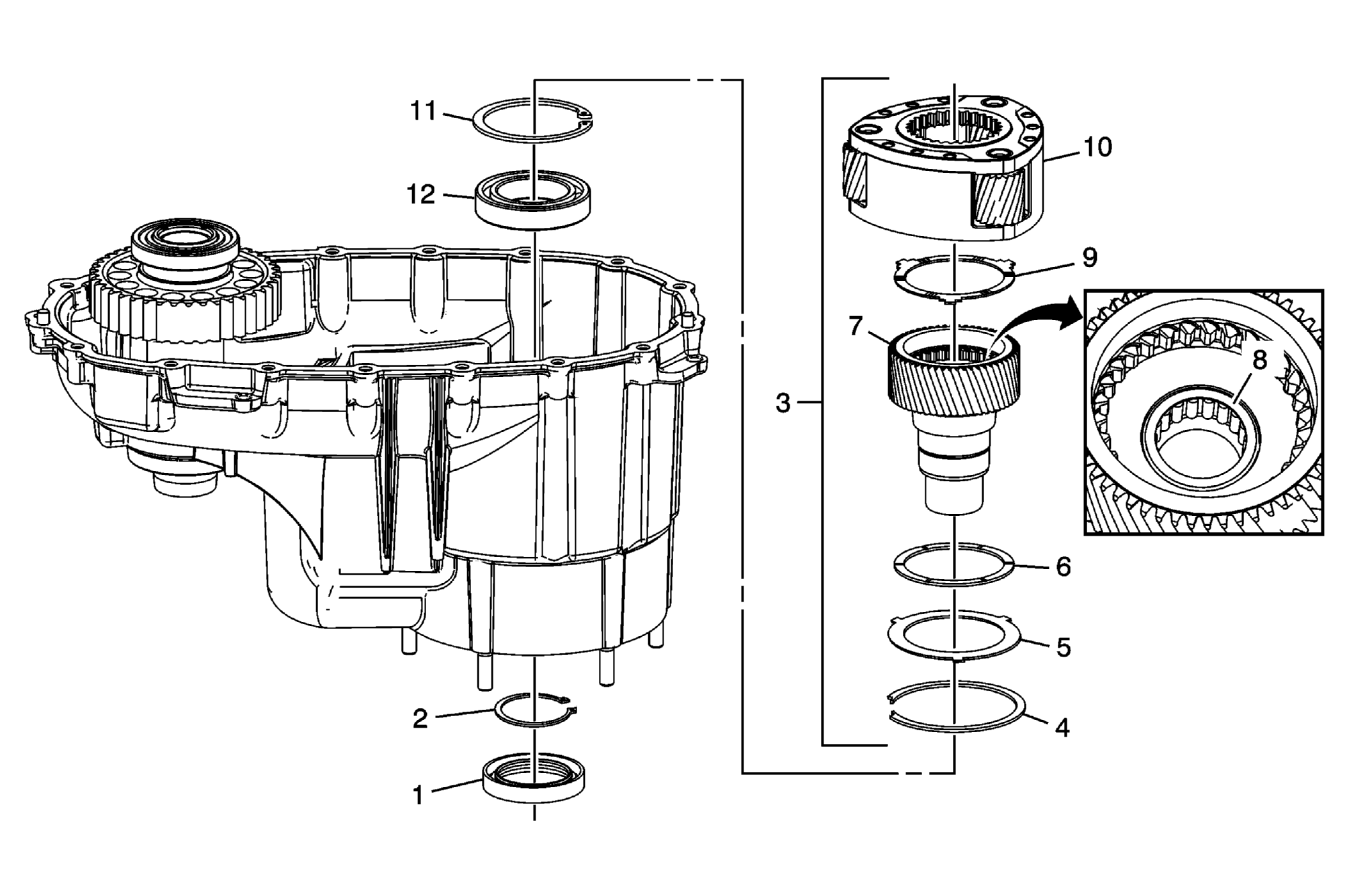

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Input Shaft Seal |
| 2 | Transfer Case Input Shaft Bearing Outer Retaining Ring
WARNING:
Do not rotate the transfer case and holding fixture with the retaining ring removed. Rotating may cause the input shaft/planetary assembly to fall from the transfer case, resulting in personal injury.
|
| 3 | Transfer Case Input Shaft/Planetary Assembly
NOTE:
Refer to Interim Model Year Design Change - NQF/NQG/NQH Front Case Half Assembly, Input Shaft, Planetary Carrier High/Low Clutch in the New Product Information .
|
| 4 | Transfer Case High/Low Planetary Carrier Retaining Ring |
| 5 | Transfer Case High/Low Locking Plate |
| 6 | Transfer Case Planetary Carrier Sun Gear Thrust Washer |
| 7 | Transfer Case Input Shaft |
| 8 | Transfer Case Input Shaft Pilot Bearing Assembly Procedure Only remove the bearing if faulty. Refer to Front Output Shaft and Input Shaft Cleaning and Inspection . |
| 9 | Transfer Case Planetary Carrier Sun Gear Thrust Washer |
| 10 | Transfer Case High/Low Planetary Carrier Assembly |
| 11 | Transfer Case Input Shaft Inner Retaining Ring |
| 12 | Transfer Case Input Shaft Bearing Assembly |
