Front Fog Lamp Bezel Replacement

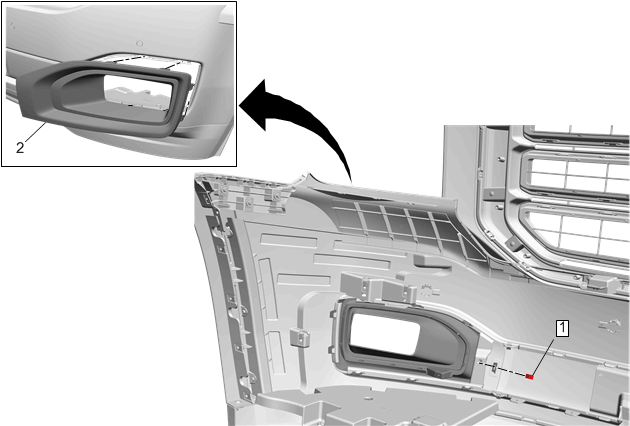

Fig 1: Front Fog Lamp Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC)Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Cadillac) . Remove the parking and front fog lamp bracket. Refer to Parking and Front Fog Lamp Bracket Replacement (GMC)Parking and Front Fog Lamp Bracket Replacement (Chevrolet) .
1	Front Fog Lamp Bezel Retainer
2	Front Fog Lamp Bezel Procedure With a suitable flat bladed tool release the locking tabs and pull forward from the front bumper fascia to remove.

Callout

Component Name

Preliminary Procedures

Front Fog Lamp Bezel Retainer

Front Fog Lamp Bezel
Procedure
With a suitable flat bladed tool release the locking tabs and pull forward from the front bumper fascia to remove.
