Parking And Front Fog Lamp Bracket Replacement (GMC)

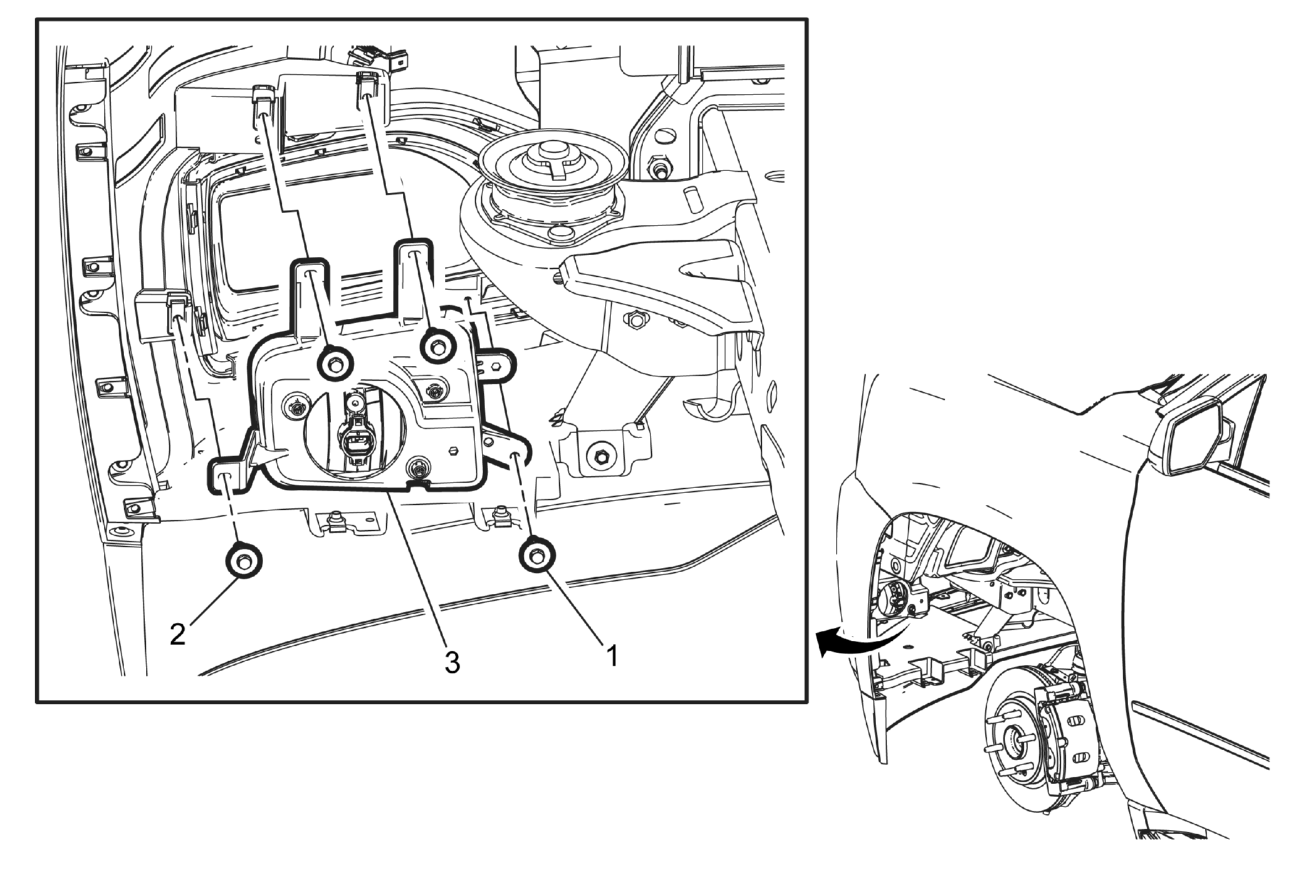

Fig 1: Parking And Front Fog Lamp Bracket (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the front of the front wheelhouse liner as needed to gain access to the part. Refer to Front Wheelhouse Liner Replacement - Left Side (GMC) , or Front Wheelhouse Liner Replacement - Right Side (GMC) .
1	Front Fog Lamp Bracket Bolt CAUTION: Refer to Fastener Caution .
2	Front Fog Lamp Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Front Fog Lamp Procedure Disconnect the electrical connector. Pull the front fog lamp bracket straight out and remove from vehicle.
