Rear Bumper Upper Fascia Replacement (Cadillac)

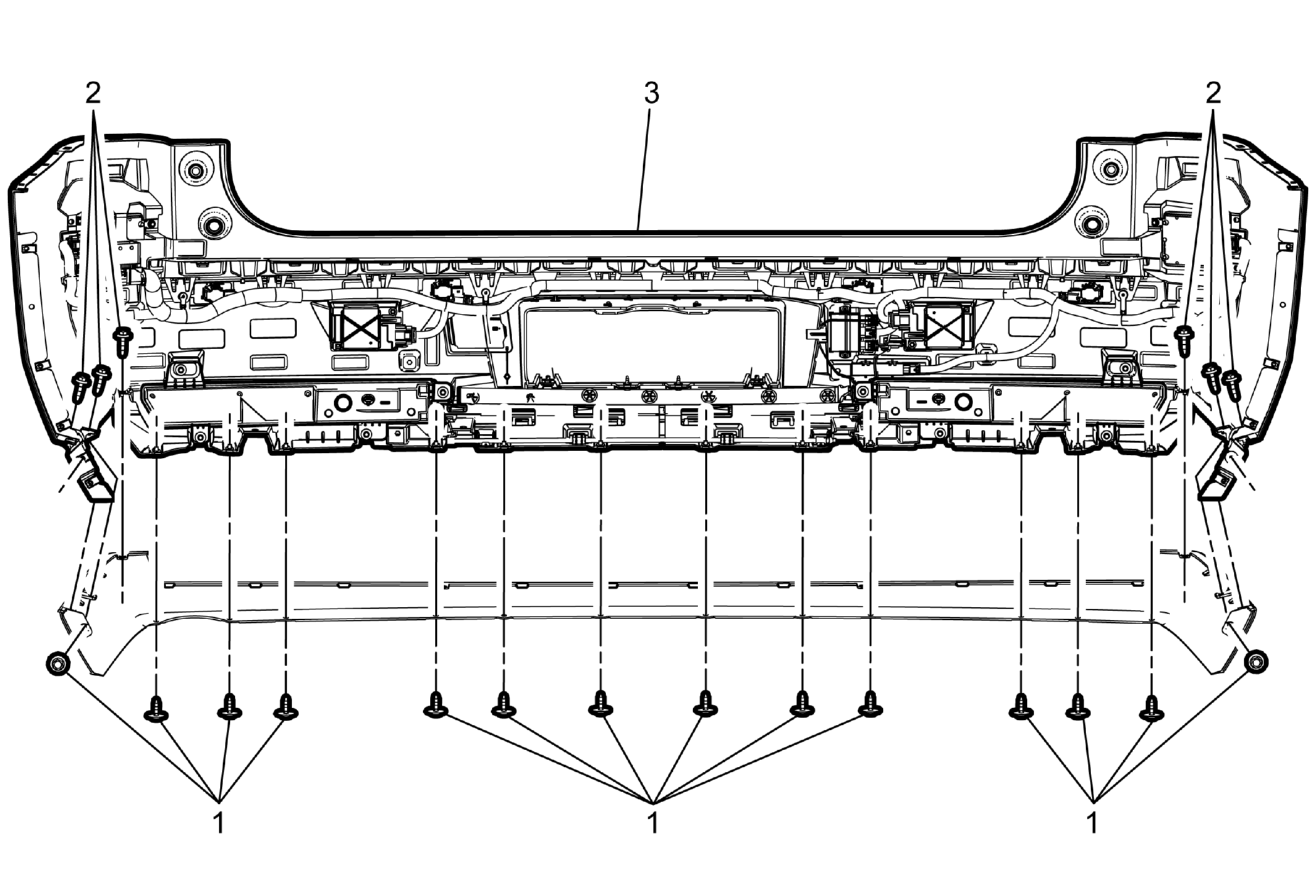

Fig 1: Rear Bumper Upper Fascia (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Cadillac) . Place the bumper fascia face down on a clean protected surface. Remove the rear fog lamps. Refer to Rear Fog Lamp Replacement (Cadillac)
1	Rear Bumper Upper Fascia Screw (Qty: 14) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Upper Fascia Bolt (Qty 6) Tighten 2.5 N.m (22 lb in)
3	Rear Bumper Upper Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia. Transfer part as necessary.
