Rear Fog Lamp Replacement (Cadillac)

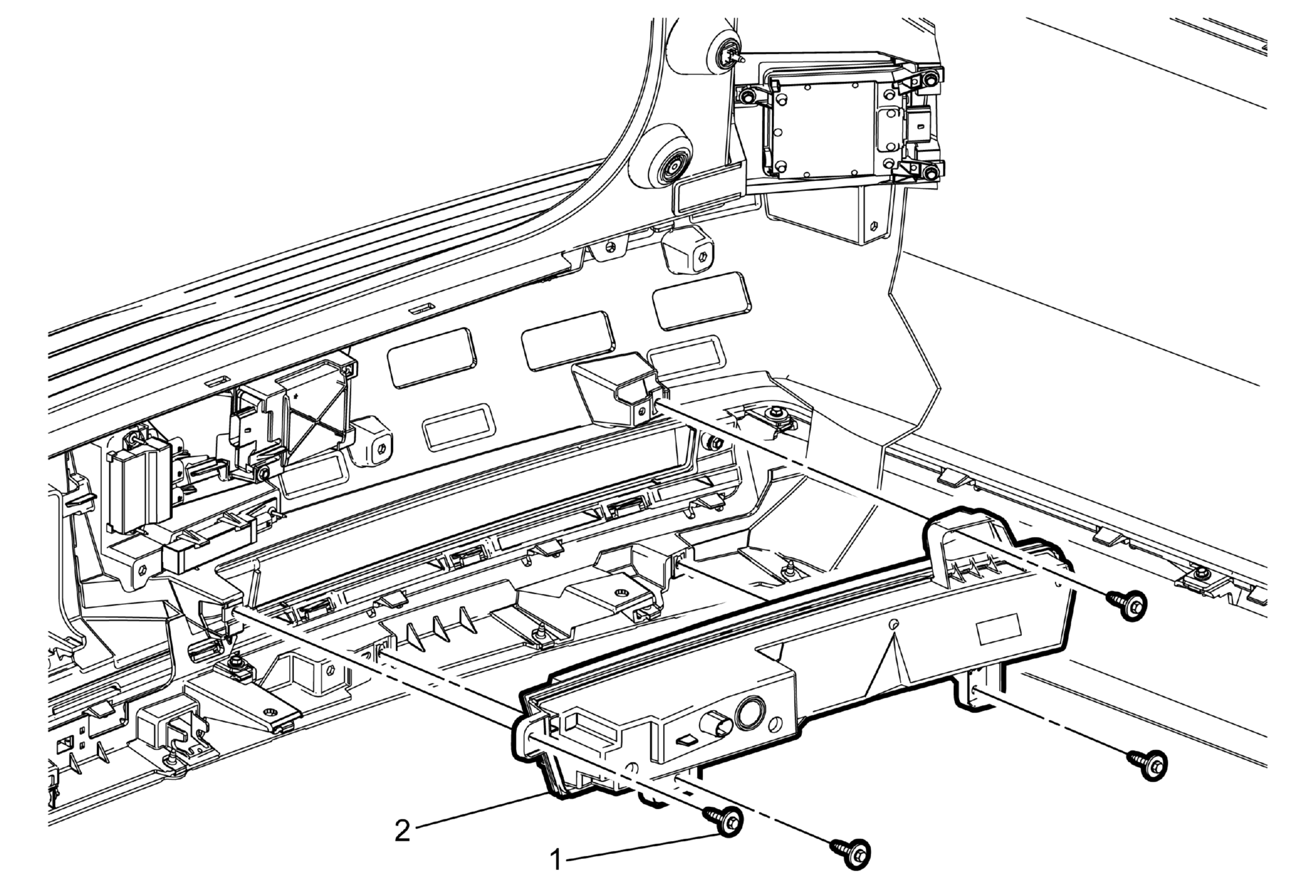

Fig 1: Rear Fog Lamp (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Cadillac) .
1	Rear Fog Lamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Rear Fog Lamp Procedure Disconnect the electrical connector, if equipped. Pull the rear fog lamp straight out and remove from vehicle.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Cadillac) .

Rear Fog Lamp Bolt (Qty: 4)

CAUTION:

Rear Fog Lamp

Procedure
