Rear Bumper Lower Fascia Replacement (Cadillac)

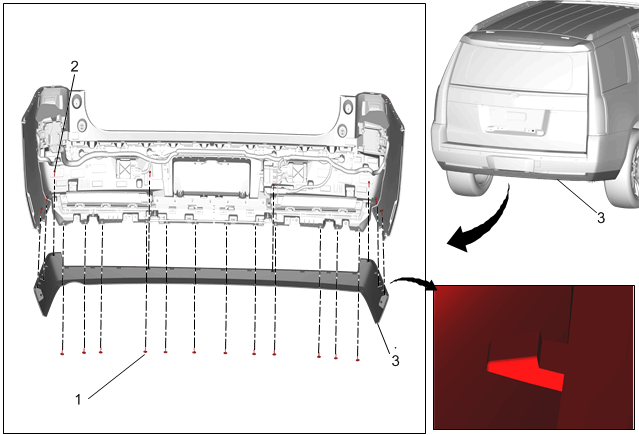

Fig 1: Rear Bumper Lower Fascia (Cadillac)
GM3973305Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
  1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Cadillac)
  2. Place the bumper fascia face down on a clean protected surface
  3. Remove the rear fog lamps. Refer to Rear Fog Lamp Replacement (Cadillac)
1 Rear Bumper Lower Fascia Screw (Qty: 12)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Bumper Lower Fascia Bolt (Qty 8)
Tighten
7 N.m (62 lb in)
3 Rear Bumper Lower Fascia

Procedure

  1. Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia.
  2. Transfer part as necessary.
