Front Bumper Fascia Lower Molding Replacement (Cadillac Below The Front Side Turn Signal Lamp)

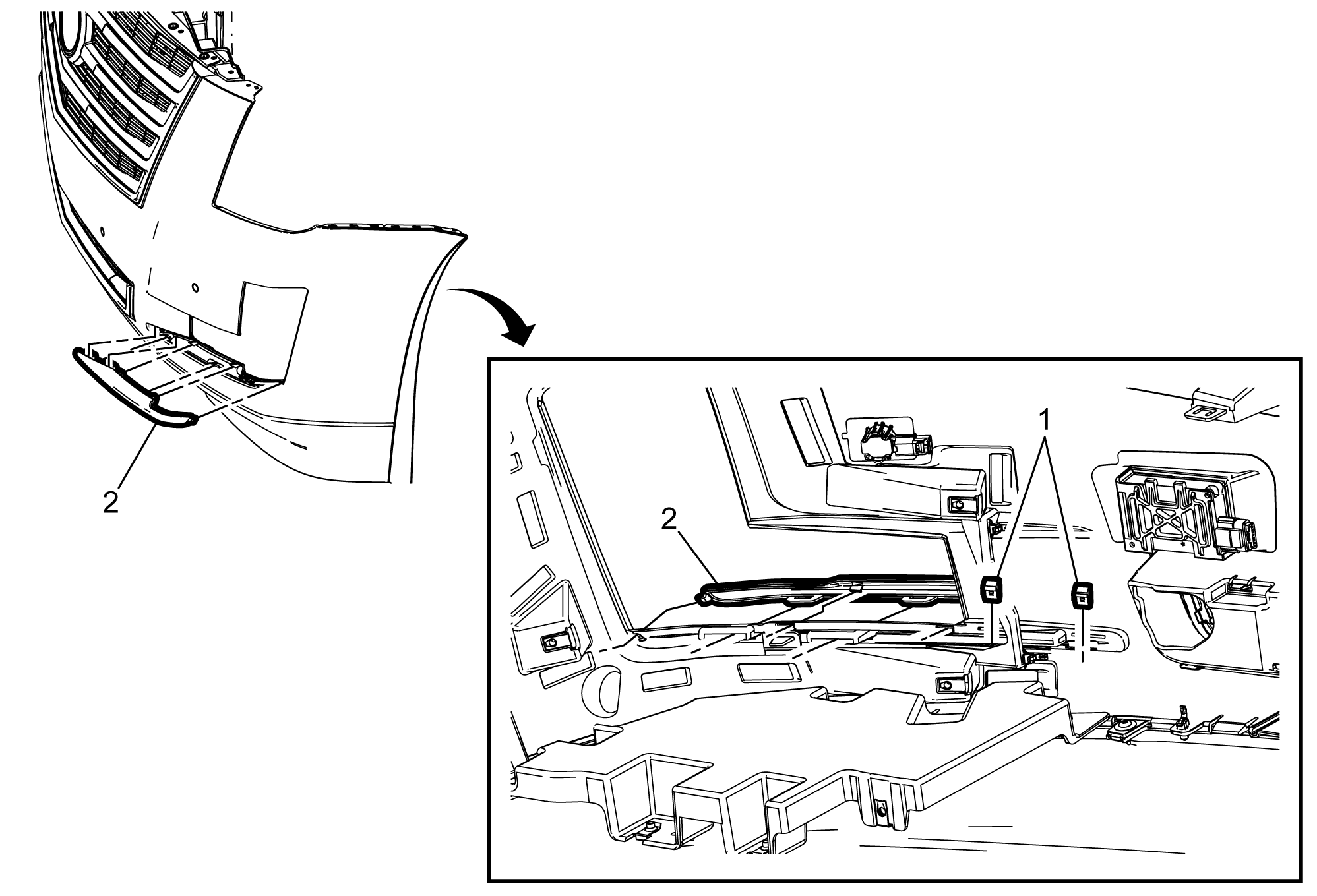

Fig 1: Front Bumper Fascia Lower Molding(Cadillac below front side turn signal lamp)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side turn signal lamp. Refer to Front Side Turn Signal Lamp Replacement
1	Front Bumper Fascia Lower Molding Clip (Qty: 2)
2	Front Bumper Fascia Lower Molding Procedure Release the five remaining front bumper fascia lower molding tabs from the front bumper fascia.

Callout

Component Name

Preliminary Procedures

Remove the front side turn signal lamp. Refer to Front Side Turn Signal Lamp Replacement

Front Bumper Fascia Lower Molding Clip (Qty: 2)

Front Bumper Fascia Lower Molding
Procedure
Release the five remaining front bumper fascia lower molding tabs from the front bumper fascia.
