Front Fog Lamp Replacement

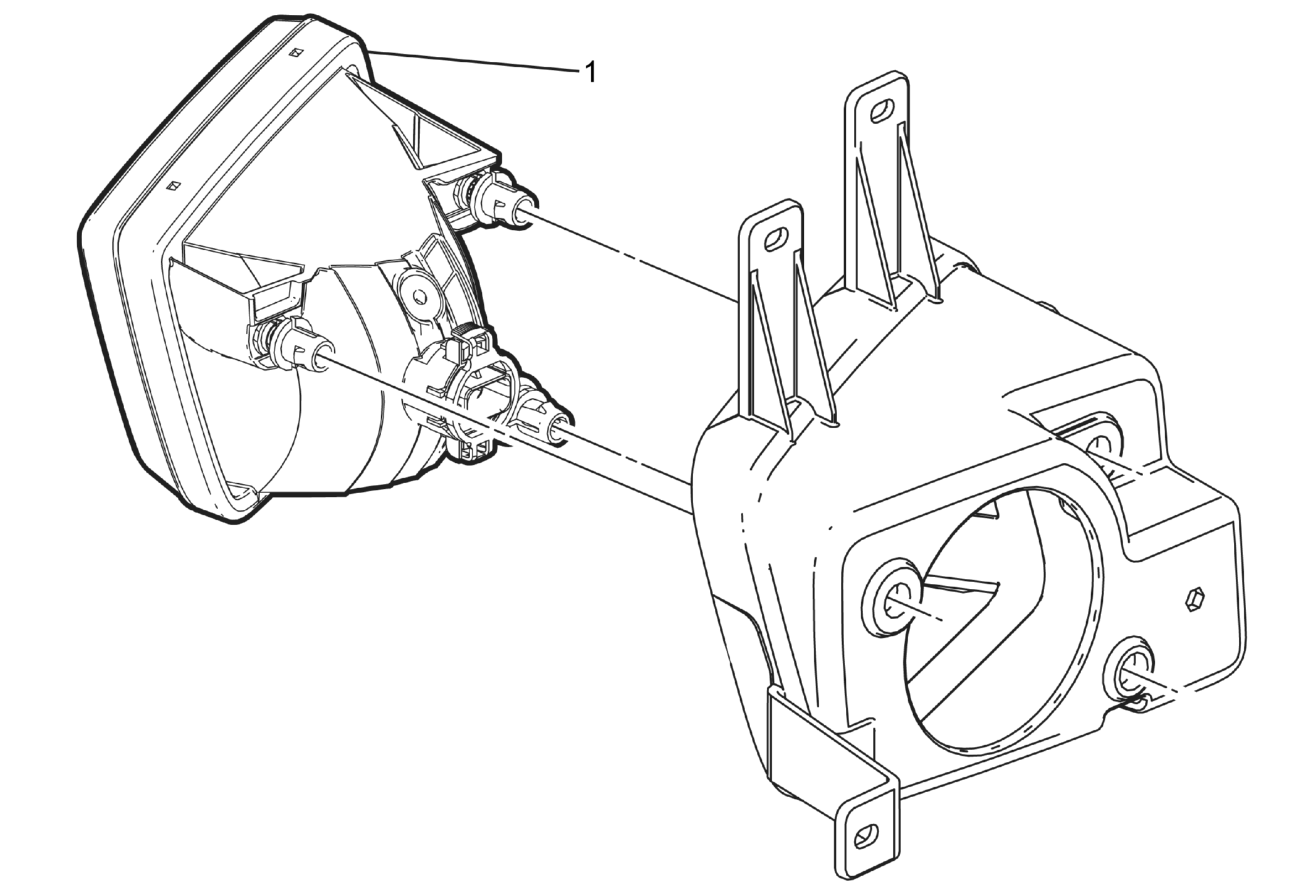

Fig 1: Front Fog Lamp
GM3637670Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the parking and front fog lamp bracket. Refer to Parking and Front Fog Lamp Bracket Replacement (GMC) Parking and Front Fog Lamp Bracket Replacement (Chevrolet) .
1 Front Fog Lamp
Procedure
With a suitable tool release the locking tabs from the front fog lamp and pull from the front fog lamp bracket.
