Center Reading And Courtesy Lamp Replacement (Rear)

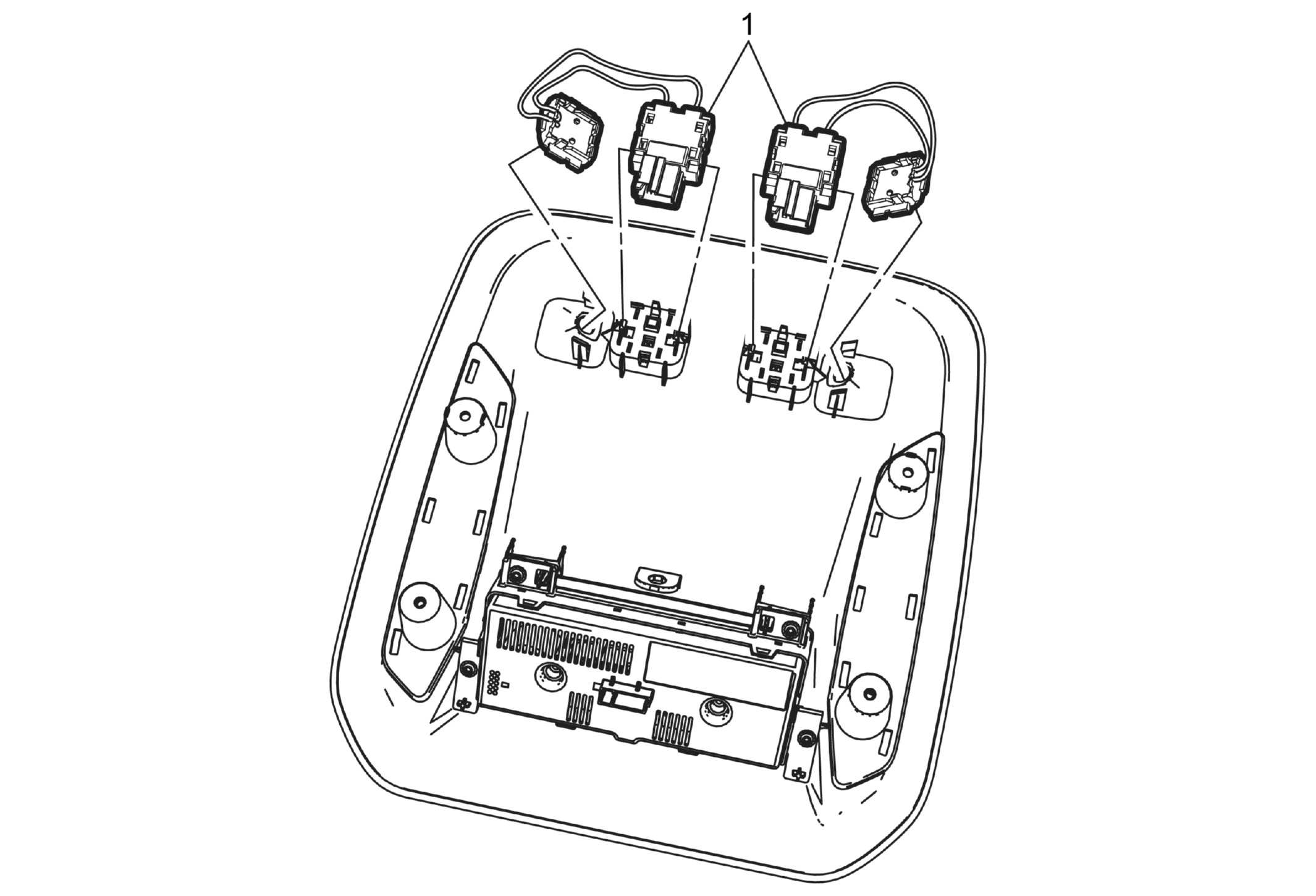

Fig 1: Center Reading And Courtesy Lamp (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the roof rear console. Refer to Roof Rear Console Replacement (Chevrolet/GMC) .
1	Center Reading and Courtesy Lamp (Qty: 2) Procedure  Depress the tabs on the lamp and the switch and gently remove from the console.
