Center Reading And Courtesy Lamp Replacement (Front)

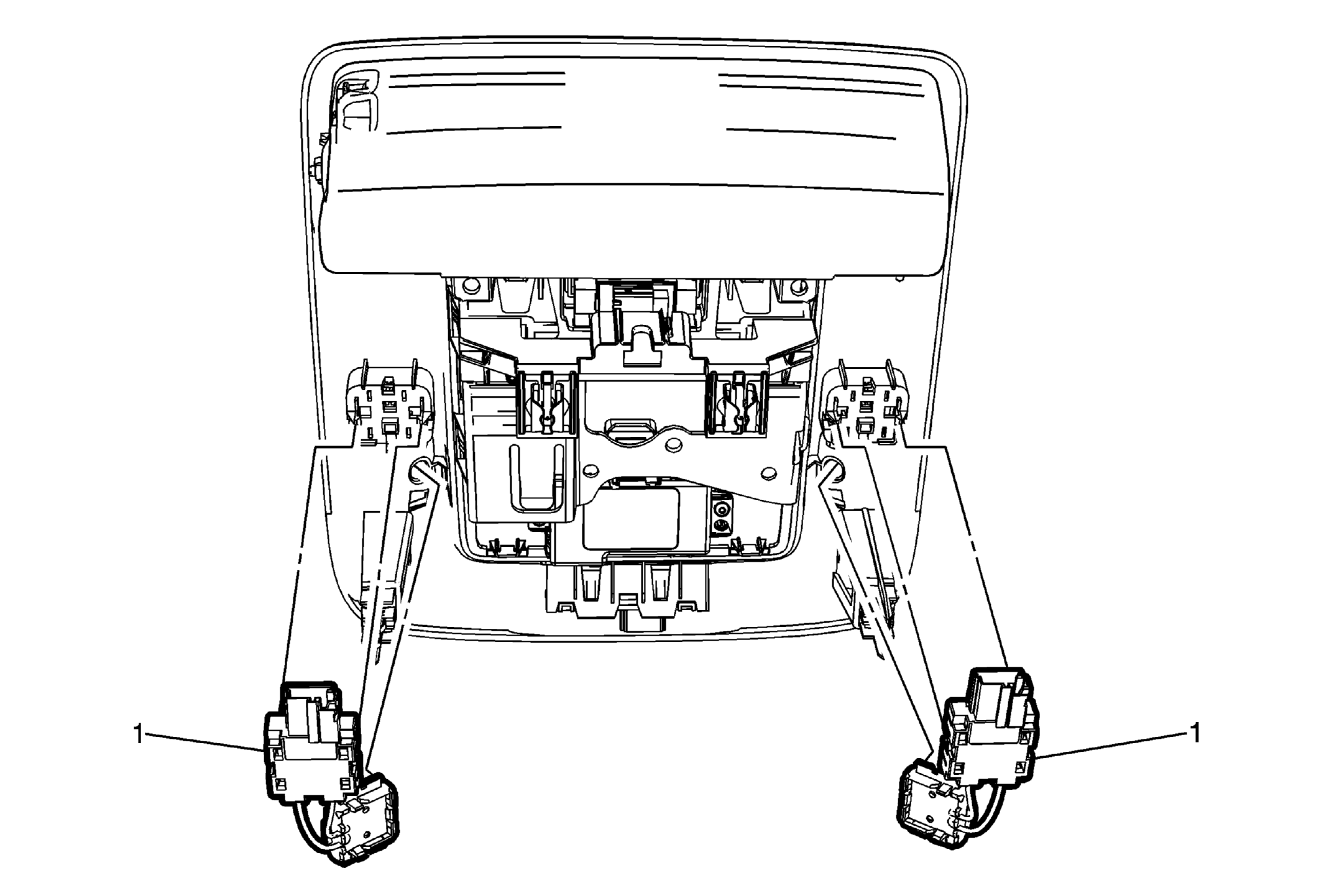

Fig 1: Center Reading And Courtesy Lamp (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the roof console. Refer to Roof Console Replacement .
1	Center Reading and Courtesy Lamp (Qty : 2) Procedure  Depress the tabs on the lamp and the switch and gently remove from the console.
