Backup Bulb Replacement (GMC)

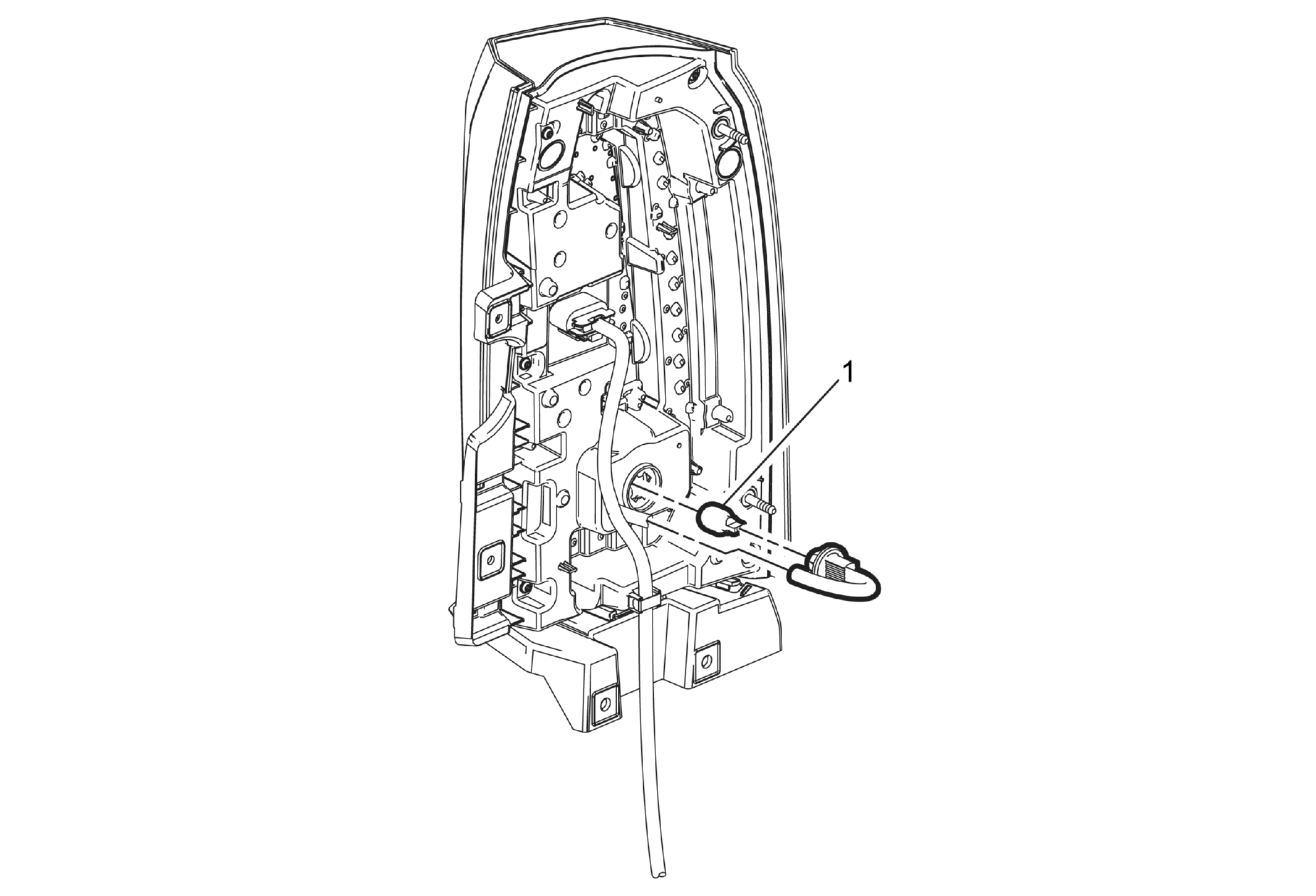

Fig 1: Backup Bulb (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet, GMC) .
1	Rear License Plate Lamp Procedure Rotate the bulb socket counterclockwise and pull from the rear body structure stop lamp. Pull backup bulb straight out from the rear lamp wiring harness.

Callout

Component Name

Preliminary Procedure
Remove the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet, GMC) .

Rear License Plate Lamp

Procedure

Rotate the bulb socket counterclockwise and pull from the rear body structure stop lamp.
Pull backup bulb straight out from the rear lamp wiring harness.
