Backup Bulb Replacement (Chevrolet)

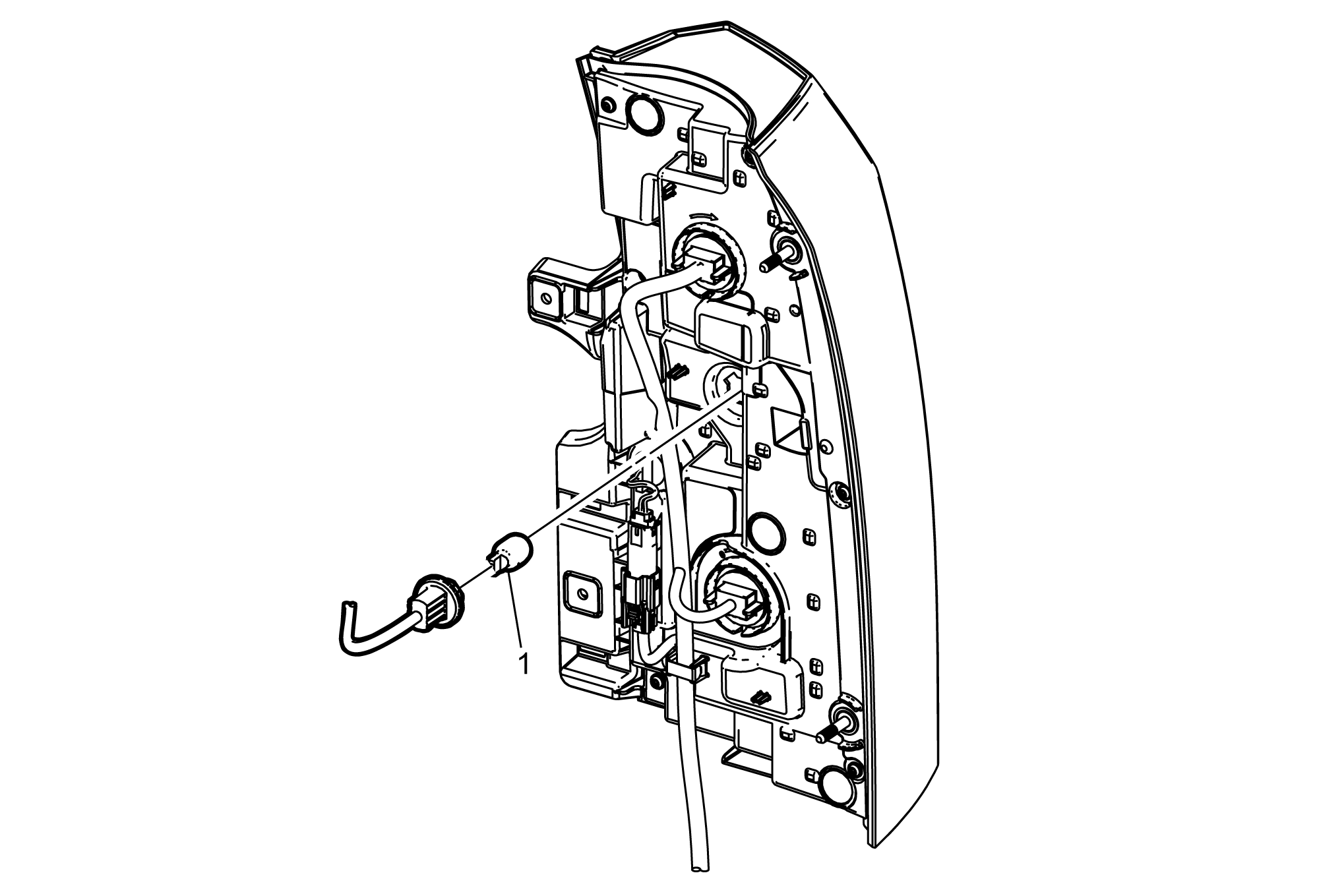

Fig 1: Backup Bulb (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet, GMC) .
1	Backup Bulb Procedure Rotate the bulb socket counterclockwise and pull from the rear body structure stop lamp. Pull backup bulb straight out from the rear lamp wiring harness socket.

Callout

Component Name

Preliminary Procedure
Remove the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet, GMC) .

Backup Bulb

Procedure

Rotate the bulb socket counterclockwise and pull from the rear body structure stop lamp.
Pull backup bulb straight out from the rear lamp wiring harness socket.
